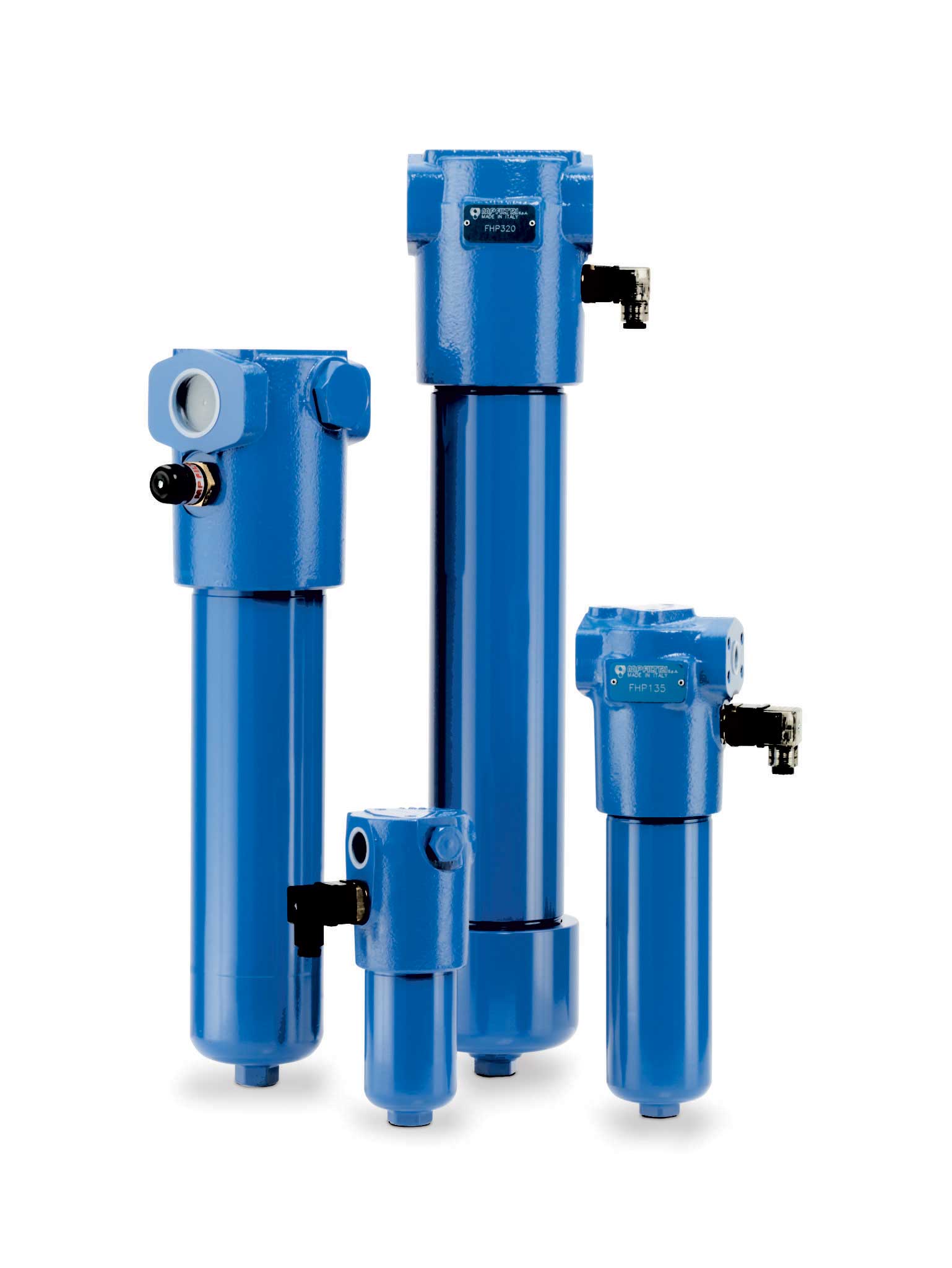

FHP Series
MP FiltriFilters for mounting in-line. Flow rates to 475 l/min. Working pressure 420 bar.
Ordering Guide
The ordering guide below provides technical specifications to assist you with your selection. When you are ready to order, simply scroll down to the 'Place your Order' section below the Ordering Guide or click on a part number in the Ordering Guide table.
Filter Part Number
Part Number | Flow Rate (l/min) | Options | Seals | Port Size | Indicator |
---|---|---|---|---|---|
FHP1352BAG1T2 | 91 – 230 | B = Bypass 6 bar | A = BUNA | G1 = 3/4″ BSP | T2 = PLUG (std) |
FHP1352BAG2T2 | 91 – 230 | B = Bypass 6 bar | A = BUNA | G2 = 1″ BSP | T2 = PLUG (std) |
FHP3202BAG1T2 | 192 – 445 | B = Bypass 6 bar | A = BUNA | G1 = 1-1/4″ BSP | T2 = PLUG (std) |
FHP3202BAG2T2 | 192 – 445 | B = Bypass 6 bar | A = BUNA | G2 = 1-1/2″ BSP | T2 = PLUG (std) |
FHP3202RAG1T2 | 192 – 445 | R = Reverse flow | A = BUNA | G1 = 1-1/4″ BSP | T2 = PLUG (std) |
FHP3203BAG2T2 | 255 – 465 | B = Bypass 6 bar | A = BUNA | G2 = 1-1/2″ BSP | T2 = PLUG (std) |
FHP3203RAG2T2 | 225 – 465 | R = Reverse flow | A = BUNA | G1 = 1-1/4″ BSP | T2 = PLUG (std) |
FHP3253BAF2T2 | 312 – 480 | B = Bypass 6 bar | A = BUNA | F2 = 2″ SAE FLANGE | T2 = PLUG (std) |
Element Part Number
Part Number | Flow Rate (l/min) | Element Type | Suits Filter Housings | Collapse Rating | Beta Ratio |
---|---|---|---|---|---|
HP0651A10AN | 48 | 10u ABS Microfibre | FHP0651 | 20 bar | bx © > 1000 |
HP0651A25AN | 72 | 25u ABS Microfibre | FHP0651 | 20 bar | bx © > 1000 |
HP0652A03AH | 30 | 3u ABS Microfibre | FHP0652 | 210 bar | bx © > 1000 |
HP0652A03AN | 31 | 3u ABS Microfibre | FHP0652 | 20 bar | bx © > 1000 |
HP0652A06AN | 45 | 6u ABS Microfibre | FHP0652 | 20 bar | bx © > 1000 |
HP0652A10AH | 57 | 10u ABS Microfibre | FHP0652 | 210 bar | bx © > 1000 |
HP0652A10AN | 60 | 10u ABS Microfibre | FHP0652 | 20 bar | bx © > 1000 |
HP0652A25AH | 75 | 25u ABS Microfibre | FHP0652 | 210 bar | bx © > 1000 |
HP0652A25AN | 82 | 25u ABS Microfibre | FHP0652 | 20 bar | bx © > 1000 |
HP0653A03AN | 53 | 3u ABS Microfibre | FHP0653 | 20 bar | bx © > 1000 |
HP0653A06AH | 52 | 6u ABS Microfibre | FHP0653 | 20 bar | bx © > 1000 |
HP0653A10AH | 78 | 10u ABS Microfibre | FHP0653 | 210 bar | bx © > 1000 |
HP0653A10AN | 79 | 10u ABS Microfibre | FHP0653 | 20 bar | bx © > 1000 |
HP0653A25AN | 94 | 25u ABS Microfibre | FHP0653 | 20 bar | bx © > 1000 |
HP1351A03AH | 50 | 3u ABS Microfibre | FHP1351 | 210 bar | bx © > 1000 |
HP1351A03AN | 69 | 3u ABS Microfibre | FHP1351 | 20 bar | bx © > 1000 |
HP1351A10AH | 98 | 10u ABS Microfibre | FHP1351 | 210 bar | bx © > 1000 |
HP1351A10AN | 120 | 10u ABS Microfibre | FHP1351 | 20 bar | bx © > 1000 |
HP1351A25AH | 156 | 25u ABS Microfibre | FHP1351 | 210 bar | bx © > 1000 |
HP1351A25AN | 171 | 25u ABS Microfibre | FHP1351 | 20 bar | bx © > 1000 |
HP1352A03AH | 91 | 3u ABS Microfibre | FHP1352 | 210 bar | bx © > 1000 |
HP1352A03AN | 110 | 3u ABS Microfibre | FHP1352 | 20 bar | bx © > 1000 |
HP1352A10AH | 136 | 10u ABS Microfibre | FHP1352 | 210 bar | bx © > 1000 |
HP1352A10AN | 148 | 10u ABS Microfibre | FHP1352 | 20 bar | bx © > 1000 |
HP1352A25AH | 175 | 25u ABS Microfibre | FHP1352 | 210 bar | bx © > 1000 |
HP1352M60AN | 230 | 60u Nom Wire Mesh | FHP1352 | 20 bar | NOMINAL |
HP3201A03AN | 126 | 3u ABS Microfibre | FHP3201 & FHP3251 | 20 bar | bx © > 1000 |
HP3201A10AH | 185 | 10u ABS Microfibre | FHP3201 & FHP3251 | 210 bar | bx © > 1000 |
HP3201A10AN | 230 | 10u ABS Microfibre | FHP3201 & FHP3251 | 20 bar | bx © > 1000 |
HP3202A03AN | 248 | 3u ABS Microfibre | FHP3202 & FHP3252 | 20 bar | bx © > 1000 |
HP3202A10AH | 300 | 10u ABS Microfibre | FHP3202 & FHP3252 | 210 bar | bx © > 1000 |
HP3202A10AN | 376 | 10u ABS Microfibre | FHP3202 & FHP3252 | 20 bar | bx © > 1000 |
HP3202A10AS | 300 | 10u ABS Microfibre | FHP3202R & FHP3253R | 210 bar | bx © > 1000 |
HP3202A25AN | 440 | 25u ABS Microfibre | FHP3202 & FHP3252 | 20 bar | bx © > 1000 |
HP3202M60AN | 450 | 60u Nom Wire Mesh | FHP3202 & FHP3252 | 20 bar | NOMINAL |
HP3203A03AN | 319 | 3u ABS Microfibre | FHP3203 & FHP3253 | 20 bar | bx © > 1000 |
HP3203A10AN | 427 | 10u ABS Microfibre | FHP3203 & FHP3253 | 20 bar | bx © > 1000 |
HP3203A10AS | 357 | 10u ABS Microfibre | FHP3203R & FHP3253R | 210 bar | bx © > 1000 |
HP3203A25AN | 450 | 25u ABS Microfibre | FHP3203 & FHP3253 | 20 bar | bx © > 1000 |
HP3204A03AN | 354 | 3u ABS Microfibre | FHP3204 & FHP3254 | 20 bar | bx © > 1000 |
HP3204A06AH | 320 | 6u ABS Microfibre | FHP3204 & FHP3254 | 210 bar | bx © > 1000 |
HP3204A10AN | 430 | 10u ABS Microfibre | FHP3204 & FHP3254 | 20 bar | bx © > 1000 |
HP3204A25AN | 467 | 25u ABS Microfibre | FHP3204 & FHP3254 | 20 bar | bx © > 1000 |
NB: Flow rates are based on oil with 30cst viscosity and pressure drop of filter assembly of 1.25 bar.
Place your Order
To make a purchase, simply scroll down to your desired part number, enter your order quantity in the box provided and then click on the 'Add to cart' button to add the product to your shopping cart.
-
FHP1352BAG1T2
Brand: MP FiltriList Price: $691.00 ex. GSTOur Price: $656.45 ex. GST -
FHP1352BAG2T2
Brand: MP FiltriList Price: $712.00 ex. GSTOur Price: $676.40 ex. GST -
FHP3203RAG2T2
Brand: MP FiltriList Price: $1484.00 ex. GSTOur Price: $1409.80 ex. GST -
FHP3253BAF2T2
Brand: MP FiltriList Price: $1288.00 ex. GSTOur Price: $1223.60 ex. GST -
HP0651A10AN
Brand: MP FiltriList Price: $107.00 ex. GSTOur Price: $101.65 ex. GST -
HP0651A25AN
Brand: MP FiltriList Price: $89.00 ex. GSTOur Price: $84.55 ex. GST -
HP0652A03AN
Brand: MP FiltriList Price: $145.00 ex. GSTOur Price: $137.75 ex. GST -
HP0652A06AN
Brand: MP FiltriList Price: $142.00 ex. GSTOur Price: $134.90 ex. GST -
HP0652A10AH
Brand: MP FiltriList Price: $286.00 ex. GSTOur Price: $271.70 ex. GST -
HP0652A10AN
Brand: MP FiltriList Price: $118.00 ex. GSTOur Price: $112.10 ex. GST -
HP0652A25AH
Brand: MP FiltriList Price: $252.00 ex. GSTOur Price: $239.40 ex. GST -
HP0652A25AN
Brand: MP FiltriList Price: $97.00 ex. GSTOur Price: $92.15 ex. GST -
HP0653A03AN
Brand: MP FiltriList Price: $215.00 ex. GSTOur Price: $204.25 ex. GST -
HP0653A10AH
Brand: MP FiltriList Price: $384.00 ex. GSTOur Price: $364.80 ex. GST -
HP0653A10AN
Brand: MP FiltriList Price: $176.00 ex. GSTOur Price: $167.20 ex. GST -
HP0653A25AN
Brand: MP FiltriList Price: $145.00 ex. GSTOur Price: $137.75 ex. GST -
HP1351A03AH
Brand: MP FiltriList Price: $500.00 ex. GSTOur Price: $475.00 ex. GST -
HP1351A03AN
Brand: MP FiltriList Price: $184.00 ex. GSTOur Price: $174.80 ex. GST -
HP1351A10AH
Brand: MP FiltriList Price: $360.00 ex. GSTOur Price: $342.00 ex. GST -
HP1351A10AN
Brand: MP FiltriList Price: $151.00 ex. GSTOur Price: $143.45 ex. GST -
HP1352A03AH
Brand: MP FiltriList Price: $715.00 ex. GSTOur Price: $679.25 ex. GST -
HP1352A03AN
Brand: MP FiltriList Price: $263.00 ex. GSTOur Price: $249.85 ex. GST -
HP1352A10AH
Brand: MP FiltriList Price: $514.00 ex. GSTOur Price: $488.30 ex. GST -
HP1352A10AN
Brand: MP FiltriList Price: $206.00 ex. GSTOur Price: $195.70 ex. GST -
HP1352A25AH
Brand: MP FiltriList Price: $404.00 ex. GSTOur Price: $383.80 ex. GST -
HP1352M60AN
Brand: MP FiltriList Price: $243.00 ex. GSTOur Price: $230.85 ex. GST -
HP3201A10AH
Brand: MP FiltriList Price: $578.00 ex. GSTOur Price: $549.10 ex. GST -
HP3202A03AN
Brand: MP FiltriList Price: $434.00 ex. GSTOur Price: $412.30 ex. GST -
HP3202A10AH
Brand: MP FiltriList Price: $750.00 ex. GSTOur Price: $712.50 ex. GST -
HP3202A10AN
Brand: MP FiltriList Price: $350.00 ex. GSTOur Price: $332.50 ex. GST -
HP3202A25AN
Brand: MP FiltriList Price: $273.00 ex. GSTOur Price: $259.35 ex. GST -
HP3203A10AN
Brand: MP FiltriList Price: $504.00 ex. GSTOur Price: $478.80 ex. GST -
HP3203A25AN
Brand: MP FiltriList Price: $411.00 ex. GSTOur Price: $390.45 ex. GST -
HP3204A10AN
Brand: MP FiltriList Price: $709.00 ex. GSTOur Price: $673.55 ex. GST -
HP3204A25AN
Brand: MP FiltriList Price: $596.00 ex. GSTOur Price: $566.20 ex. GST
