Saddle Clamps

Name: Saddle Clamps
SKU: 7144
Price: 157.70 AUD
Availability: InStock

Sale!

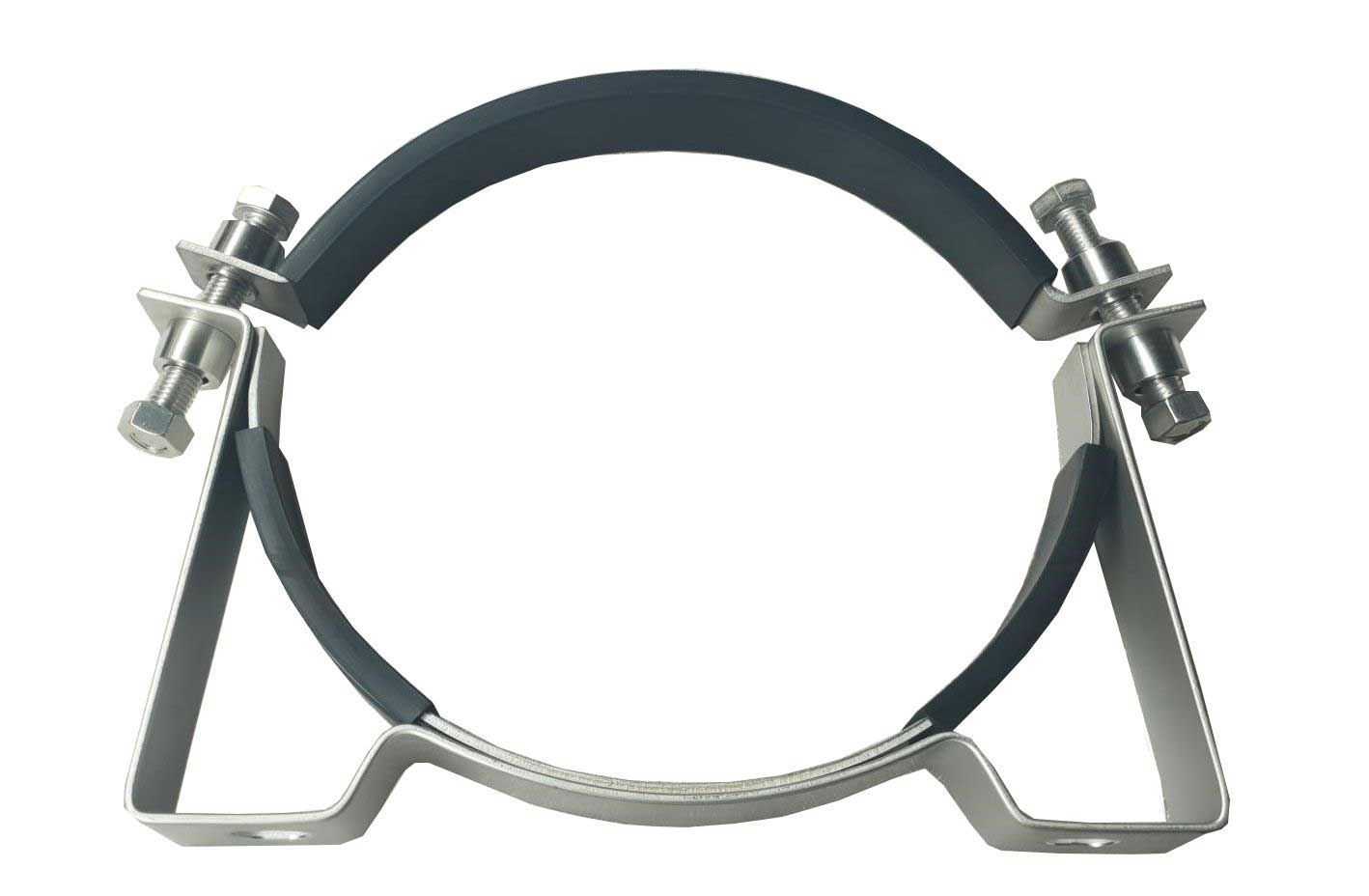

The Exotech (Olaer) saddle clamps are used to hold an accumulator securely. It is advised that customers review the size of their accumulator as additional support brackets may need to be purchased depending on the mounting orientation. These saddles clamps are manufactured from:
– Mild steel with external zinc plated finish
– The rubber strips are made from nitrile

Ordering Guide

The ordering guide below provides technical specifications to assist you with your selection. When you are ready to order, simply scroll down to the 'Place your Order' section below the Ordering Guide or click on a part number in the Ordering Guide table.

Saddle Clamps

Part Number	ØD (Min/Max)	Mounting Bolt	Weight (kg)	Support Bracket
20002-C17U-000	87 – 97	M8	0.3	n/a
20007-C17U-000	99 – 109	M8	0.3	n/a
20009-C17U-000	112 – 124	M8	0.4	n/a
20008-C17U-000	128 – 138	M8	0.4	n/a
20011-C17U-000	146 – 157	M10	0.5	n/a
20006-C17U-000	166 – 176	M10	0.6	20005-C17D-000
20001-C17U-000	219 – 232	M12	1.2	20002-C17D-000

Support Brackets

Part Number	Cushion Ring
20005-C17D-000	20016-000D-000
20002-C17D-000	20015-000D-000

Required Mounting

Volume (L)	Saddle Clamp	Qty (Vertical)	Qty (Horizontal)	Support Bracket
0.6	20002-C17U-000	1	1	n/a
1	20009-C17U-000	1	1	n/a
2.5	20009-C17U-000	1	2	n/a
4	20006-C17U-000	1	1	20005-C17D-000
10	20001-C17U-000	1	2	20002-C17D-000
12	20001-C17U-000	1	2	20002-C17D-000
20	20001-C17U-000	1	2	20002-C17D-000
37	20001-C17U-000	2	3	20002-C17D-000
50	20001-C17U-000	2	3	20002-C17D-000
57	20001-C17U-000	2	3	20002-C17D-000
75	20001-C17U-000	3	4	20002-C17D-000

Place your Order

To make a purchase, simply scroll down to your desired part number, enter your order quantity in the box provided and then click on the 'Add to cart' button to add the product to your shopping cart.

array(10) { [0]=> object(WP_Post)#6917 (44) { ["ID"]=> int(5962) ["post_author"]=> string(3) "649" ["post_date"]=> string(19) "2018-06-20 10:12:02" ["post_date_gmt"]=> string(19) "2018-06-20 00:12:02" ["post_content"]=> string(741) "We understand the importance of quality brakes and supply a range with exceptional holding power for both wet and dry conditions, for a variety of applications and industries. Designed and built for the harshest conditions, our range of brakes are utilised on a arrange of equipment including loaders, cotton harvesters, oil rig equipment, cranes, serial work platforms and boom lifts. We supply multi-disc brakes and torque lock brake systems from leading manufacturers including Ausco and Fairfield. Our hydraulic brake range is currently not available to purchase through our online shop. For product information, pricing and availability regarding our hydraulic brake range please fill out a form, call or email us using the links below." ["post_title"]=> string(0) "" ["post_excerpt"]=> string(0) "" ["post_status"]=> string(7) "publish" ["comment_status"]=> string(6) "closed" ["ping_status"]=> string(6) "closed" ["post_password"]=> string(0) "" ["post_name"]=> string(4) "5962" ["to_ping"]=> string(0) "" ["pinged"]=> string(0) "" ["post_modified"]=> string(19) "2019-02-11 13:50:59" ["post_modified_gmt"]=> string(19) "2019-02-11 02:50:59" ["post_content_filtered"]=> string(0) "" ["post_parent"]=> int(0) ["guid"]=> string(36) "https://www.berendsen.com.au/?p=5962" ["menu_order"]=> int(1) ["post_type"]=> string(13) "nav_menu_item" ["post_mime_type"]=> string(0) "" ["comment_count"]=> string(1) "0" ["filter"]=> string(3) "raw" ["db_id"]=> int(5962) ["menu_item_parent"]=> string(1) "0" ["object_id"]=> string(3) "158" ["object"]=> string(11) "product_cat" ["type"]=> string(8) "taxonomy" ["type_label"]=> string(8) "Category" ["url"]=> string(49) "https://berendsen.com.au/product-category/brakes/" ["title"]=> string(6) "Brakes" ["target"]=> string(0) "" ["attr_title"]=> string(0) "" ["description"]=> string(741) "We understand the importance of quality brakes and supply a range with exceptional holding power for both wet and dry conditions, for a variety of applications and industries. Designed and built for the harshest conditions, our range of brakes are utilised on a arrange of equipment including loaders, cotton harvesters, oil rig equipment, cranes, serial work platforms and boom lifts. We supply multi-disc brakes and torque lock brake systems from leading manufacturers including Ausco and Fairfield. Our hydraulic brake range is currently not available to purchase through our online shop. For product information, pricing and availability regarding our hydraulic brake range please fill out a form, call or email us using the links below." ["classes"]=> array(4) { [0]=> string(0) "" [1]=> string(9) "menu-item" [2]=> string(23) "menu-item-type-taxonomy" [3]=> string(28) "menu-item-object-product_cat" } ["xfn"]=> string(0) "" ["cpcm_unfold"]=> string(0) "" ["cpcm_item_count"]=> int(-1) ["cpcm_orderby"]=> string(4) "none" ["cpcm_item_titles"]=> string(11) "%post_title" ["current"]=> bool(false) ["current_item_ancestor"]=> bool(false) ["current_item_parent"]=> bool(false) } [1]=> object(WP_Post)#6707 (44) { ["ID"]=> int(5963) ["post_author"]=> string(3) "649" ["post_date"]=> string(19) "2018-06-20 10:12:02" ["post_date_gmt"]=> string(19) "2018-06-20 00:12:02" ["post_content"]=> string(673) "Coolers and heaters work to maintain an ideal working temperature of hydraulic fluid to prevent fluid damage or system failures. We source a range of hydraulic coolers and heaters from well-known suppliers including Olaer. Our range of Olaer coolers and heaters includes: Air/oil heat exchangers including LAC Series, LDC Series, LHC Series Water/oil heat exchangers including PWO Series Air/water coolers Our hydraulic coolers and heaters range is currently not available to purchase through our online shop. For product information, pricing and availability regarding our hydraulic coolers and heaters range please fill out a form, call or email us using the links below." ["post_title"]=> string(17) "Coolers & Heaters" ["post_excerpt"]=> string(0) "" ["post_status"]=> string(7) "publish" ["comment_status"]=> string(6) "closed" ["ping_status"]=> string(6) "closed" ["post_password"]=> string(0) "" ["post_name"]=> string(17) "coolers-heaters-2" ["to_ping"]=> string(0) "" ["pinged"]=> string(0) "" ["post_modified"]=> string(19) "2019-02-11 13:50:59" ["post_modified_gmt"]=> string(19) "2019-02-11 02:50:59" ["post_content_filtered"]=> string(0) "" ["post_parent"]=> int(0) ["guid"]=> string(36) "https://www.berendsen.com.au/?p=5963" ["menu_order"]=> int(2) ["post_type"]=> string(13) "nav_menu_item" ["post_mime_type"]=> string(0) "" ["comment_count"]=> string(1) "0" ["filter"]=> string(3) "raw" ["db_id"]=> int(5963) ["menu_item_parent"]=> string(1) "0" ["object_id"]=> string(3) "159" ["object"]=> string(11) "product_cat" ["type"]=> string(8) "taxonomy" ["type_label"]=> string(8) "Category" ["url"]=> string(62) "https://berendsen.com.au/product-category/coolers-and-heaters/" ["title"]=> string(17) "Coolers & Heaters" ["target"]=> string(0) "" ["attr_title"]=> string(0) "" ["description"]=> string(673) "Coolers and heaters work to maintain an ideal working temperature of hydraulic fluid to prevent fluid damage or system failures. We source a range of hydraulic coolers and heaters from well-known suppliers including Olaer. Our range of Olaer coolers and heaters includes: Air/oil heat exchangers including LAC Series, LDC Series, LHC Series Water/oil heat exchangers including PWO Series Air/water coolers Our hydraulic coolers and heaters range is currently not available to purchase through our online shop. For product information, pricing and availability regarding our hydraulic coolers and heaters range please fill out a form, call or email us using the links below." ["classes"]=> array(4) { [0]=> string(0) "" [1]=> string(9) "menu-item" [2]=> string(23) "menu-item-type-taxonomy" [3]=> string(28) "menu-item-object-product_cat" } ["xfn"]=> string(0) "" ["cpcm_unfold"]=> string(0) "" ["cpcm_item_count"]=> int(-1) ["cpcm_orderby"]=> string(4) "none" ["cpcm_item_titles"]=> string(11) "%post_title" ["current"]=> bool(false) ["current_item_ancestor"]=> bool(false) ["current_item_parent"]=> bool(false) } [2]=> object(WP_Post)#6872 (44) { ["ID"]=> int(5965) ["post_author"]=> string(3) "649" ["post_date"]=> string(19) "2018-06-20 10:22:23" ["post_date_gmt"]=> string(19) "2018-06-20 00:22:23" ["post_content"]=> string(884) "Hydraulic gearboxes are a reliable and effective solution for power transmission and motion control, suitable for many types of off-road, mobile vehicles and equipment. We source a complete range for light duty industrial automation applications from well-known brands such as Fairfield and Bonfigioli. Our range of Fairfield gearboxes includes: Torque-hub wheel drives Torque-hub shaft output drives Excel Series including 7000, 11000, 18000 Series Torque-hub planetary final drives including CT and CW Series Our range of Bonfiglioli gearboxes includes: Industrial gearboxes including 300 Series Multipurpose Gearbox Planetary gearboxes Our hydraulic gearbox range is currently not available to purchase through our online shop. For product information, pricing and availability regarding our hydraulic gearbox range please fill out a form, call or email us using the links below." ["post_title"]=> string(0) "" ["post_excerpt"]=> string(0) "" ["post_status"]=> string(7) "publish" ["comment_status"]=> string(6) "closed" ["ping_status"]=> string(6) "closed" ["post_password"]=> string(0) "" ["post_name"]=> string(4) "5965" ["to_ping"]=> string(0) "" ["pinged"]=> string(0) "" ["post_modified"]=> string(19) "2019-02-11 13:50:59" ["post_modified_gmt"]=> string(19) "2019-02-11 02:50:59" ["post_content_filtered"]=> string(0) "" ["post_parent"]=> int(0) ["guid"]=> string(36) "https://www.berendsen.com.au/?p=5965" ["menu_order"]=> int(3) ["post_type"]=> string(13) "nav_menu_item" ["post_mime_type"]=> string(0) "" ["comment_count"]=> string(1) "0" ["filter"]=> string(3) "raw" ["db_id"]=> int(5965) ["menu_item_parent"]=> string(1) "0" ["object_id"]=> string(3) "160" ["object"]=> string(11) "product_cat" ["type"]=> string(8) "taxonomy" ["type_label"]=> string(8) "Category" ["url"]=> string(52) "https://berendsen.com.au/product-category/gearboxes/" ["title"]=> string(9) "Gearboxes" ["target"]=> string(0) "" ["attr_title"]=> string(0) "" ["description"]=> string(884) "Hydraulic gearboxes are a reliable and effective solution for power transmission and motion control, suitable for many types of off-road, mobile vehicles and equipment. We source a complete range for light duty industrial automation applications from well-known brands such as Fairfield and Bonfigioli. Our range of Fairfield gearboxes includes: Torque-hub wheel drives Torque-hub shaft output drives Excel Series including 7000, 11000, 18000 Series Torque-hub planetary final drives including CT and CW Series Our range of Bonfiglioli gearboxes includes: Industrial gearboxes including 300 Series Multipurpose Gearbox Planetary gearboxes Our hydraulic gearbox range is currently not available to purchase through our online shop. For product information, pricing and availability regarding our hydraulic gearbox range please fill out a form, call or email us using the links below." ["classes"]=> array(4) { [0]=> string(0) "" [1]=> string(9) "menu-item" [2]=> string(23) "menu-item-type-taxonomy" [3]=> string(28) "menu-item-object-product_cat" } ["xfn"]=> string(0) "" ["cpcm_unfold"]=> string(0) "" ["cpcm_item_count"]=> int(-1) ["cpcm_orderby"]=> string(4) "none" ["cpcm_item_titles"]=> string(11) "%post_title" ["current"]=> bool(false) ["current_item_ancestor"]=> bool(false) ["current_item_parent"]=> bool(false) } [3]=> object(WP_Post)#6931 (44) { ["ID"]=> int(5966) ["post_author"]=> string(3) "649" ["post_date"]=> string(19) "2018-06-20 10:22:23" ["post_date_gmt"]=> string(19) "2018-06-20 00:22:23" ["post_content"]=> string(722) "Berendsen sources a large selection of hydraulic hoses and fitting sizes such as braided, spiral and multi-purpose hydraulic hoses. These ultimate fluid conveyance solutions are equipped with wide operating pressure ranges, optimal levels of abrasion resistance, long-lasting durability and high-performance transfer capabilities. We supply hydraulic hose, fittings, adapters, couplings and fluid connectors from well-known suppliers including Eaton Aeroquip. Our hydraulic hose and fitting range is currently not available to purchase through our online shop. For product information, pricing and availability regarding our hydraulic hose and fitting range please fill out a form, call or email us using the links below." ["post_title"]=> string(15) "Hose & Fittings" ["post_excerpt"]=> string(0) "" ["post_status"]=> string(7) "publish" ["comment_status"]=> string(6) "closed" ["ping_status"]=> string(6) "closed" ["post_password"]=> string(0) "" ["post_name"]=> string(15) "hose-fittings-2" ["to_ping"]=> string(0) "" ["pinged"]=> string(0) "" ["post_modified"]=> string(19) "2019-02-11 13:50:59" ["post_modified_gmt"]=> string(19) "2019-02-11 02:50:59" ["post_content_filtered"]=> string(0) "" ["post_parent"]=> int(0) ["guid"]=> string(36) "https://www.berendsen.com.au/?p=5966" ["menu_order"]=> int(4) ["post_type"]=> string(13) "nav_menu_item" ["post_mime_type"]=> string(0) "" ["comment_count"]=> string(1) "0" ["filter"]=> string(3) "raw" ["db_id"]=> int(5966) ["menu_item_parent"]=> string(1) "0" ["object_id"]=> string(3) "161" ["object"]=> string(11) "product_cat" ["type"]=> string(8) "taxonomy" ["type_label"]=> string(8) "Category" ["url"]=> string(60) "https://berendsen.com.au/product-category/hose-and-fittings/" ["title"]=> string(15) "Hose & Fittings" ["target"]=> string(0) "" ["attr_title"]=> string(0) "" ["description"]=> string(722) "Berendsen sources a large selection of hydraulic hoses and fitting sizes such as braided, spiral and multi-purpose hydraulic hoses. These ultimate fluid conveyance solutions are equipped with wide operating pressure ranges, optimal levels of abrasion resistance, long-lasting durability and high-performance transfer capabilities. We supply hydraulic hose, fittings, adapters, couplings and fluid connectors from well-known suppliers including Eaton Aeroquip. Our hydraulic hose and fitting range is currently not available to purchase through our online shop. For product information, pricing and availability regarding our hydraulic hose and fitting range please fill out a form, call or email us using the links below." ["classes"]=> array(4) { [0]=> string(0) "" [1]=> string(9) "menu-item" [2]=> string(23) "menu-item-type-taxonomy" [3]=> string(28) "menu-item-object-product_cat" } ["xfn"]=> string(0) "" ["cpcm_unfold"]=> string(0) "" ["cpcm_item_count"]=> int(-1) ["cpcm_orderby"]=> string(4) "none" ["cpcm_item_titles"]=> string(11) "%post_title" ["current"]=> bool(false) ["current_item_ancestor"]=> bool(false) ["current_item_parent"]=> bool(false) } [4]=> object(WP_Post)#6918 (44) { ["ID"]=> int(5967) ["post_author"]=> string(3) "649" ["post_date"]=> string(19) "2018-06-20 10:22:23" ["post_date_gmt"]=> string(19) "2018-06-20 00:22:23" ["post_content"]=> string(750) "Instrumentation and gauges are essential elements of hydraulic systems and include pressure gauges, pressure switches, flow meters, pressure sensors, temperature sensors, turbine flow meters, gear flow meters, speed sensor infrareds and mini test fittings and hoses. We source a large range of instrumentations and gauges from MP Filtri, Hystar and The Hydraulic Warehouse. Our range of MP Filtri instrumentation and gauges includes: ICM particle counter LPA2 particle counter Our instrumentation and gauges range is currently not available to purchase through our online shop. For product information, pricing and availability regarding our hydraulic instrumentation and gauges range please fill out a form, call or email us using the links below." ["post_title"]=> string(15) "Instrumentation" ["post_excerpt"]=> string(0) "" ["post_status"]=> string(7) "publish" ["comment_status"]=> string(6) "closed" ["ping_status"]=> string(6) "closed" ["post_password"]=> string(0) "" ["post_name"]=> string(24) "instrumentation-gauges-2" ["to_ping"]=> string(0) "" ["pinged"]=> string(0) "" ["post_modified"]=> string(19) "2019-02-11 13:50:59" ["post_modified_gmt"]=> string(19) "2019-02-11 02:50:59" ["post_content_filtered"]=> string(0) "" ["post_parent"]=> int(0) ["guid"]=> string(36) "https://www.berendsen.com.au/?p=5967" ["menu_order"]=> int(5) ["post_type"]=> string(13) "nav_menu_item" ["post_mime_type"]=> string(0) "" ["comment_count"]=> string(1) "0" ["filter"]=> string(3) "raw" ["db_id"]=> int(5967) ["menu_item_parent"]=> string(1) "0" ["object_id"]=> string(3) "164" ["object"]=> string(11) "product_cat" ["type"]=> string(8) "taxonomy" ["type_label"]=> string(8) "Category" ["url"]=> string(69) "https://berendsen.com.au/product-category/instrumentation-and-gauges/" ["title"]=> string(15) "Instrumentation" ["target"]=> string(0) "" ["attr_title"]=> string(0) "" ["description"]=> string(750) "Instrumentation and gauges are essential elements of hydraulic systems and include pressure gauges, pressure switches, flow meters, pressure sensors, temperature sensors, turbine flow meters, gear flow meters, speed sensor infrareds and mini test fittings and hoses. We source a large range of instrumentations and gauges from MP Filtri, Hystar and The Hydraulic Warehouse. Our range of MP Filtri instrumentation and gauges includes: ICM particle counter LPA2 particle counter Our instrumentation and gauges range is currently not available to purchase through our online shop. For product information, pricing and availability regarding our hydraulic instrumentation and gauges range please fill out a form, call or email us using the links below." ["classes"]=> array(4) { [0]=> string(0) "" [1]=> string(9) "menu-item" [2]=> string(23) "menu-item-type-taxonomy" [3]=> string(28) "menu-item-object-product_cat" } ["xfn"]=> string(0) "" ["cpcm_unfold"]=> string(0) "" ["cpcm_item_count"]=> int(-1) ["cpcm_orderby"]=> string(4) "none" ["cpcm_item_titles"]=> string(11) "%post_title" ["current"]=> bool(false) ["current_item_ancestor"]=> bool(false) ["current_item_parent"]=> bool(false) } [5]=> object(WP_Post)#6925 (44) { ["ID"]=> int(5968) ["post_author"]=> string(3) "649" ["post_date"]=> string(19) "2018-06-20 10:22:23" ["post_date_gmt"]=> string(19) "2018-06-20 00:22:23" ["post_content"]=> string(1167) "Manifolds regulate the fluid flow between pumps, actuators and other components in a hydraulic system, allowing the operator to control how much fluid flows between the different components. Berendsen is proud to have developed our own range of standard manifolds and custom designed and manufactured manifolds to meet the needs of a range of industrial applications. Our standard range of manifolds includes station manifolds, CETOP 3 manifolds, CETOP 5 manifolds and sub-plates. Custom Designed and Manufactured Manifolds Manufactured to the highest quality at our ISO certified manufacturing hub in Newcastle, our range includes steel, aluminium and stainless steel manifolds. Our world class CAD manifold design software and the latest technologies applied in our manufacturing process make us the first choice supplier of custom and standard manifolds. Click here for more information on our custom manifold manufacturing capabilities. Our manifold range is currently not available to purchase through our online shop. For product information, pricing and availability regarding our manifold range please fill out a form, call or email us using the links below." ["post_title"]=> string(0) "" ["post_excerpt"]=> string(0) "" ["post_status"]=> string(7) "publish" ["comment_status"]=> string(6) "closed" ["ping_status"]=> string(6) "closed" ["post_password"]=> string(0) "" ["post_name"]=> string(4) "5968" ["to_ping"]=> string(0) "" ["pinged"]=> string(0) "" ["post_modified"]=> string(19) "2019-02-11 13:50:59" ["post_modified_gmt"]=> string(19) "2019-02-11 02:50:59" ["post_content_filtered"]=> string(0) "" ["post_parent"]=> int(0) ["guid"]=> string(36) "https://www.berendsen.com.au/?p=5968" ["menu_order"]=> int(6) ["post_type"]=> string(13) "nav_menu_item" ["post_mime_type"]=> string(0) "" ["comment_count"]=> string(1) "0" ["filter"]=> string(3) "raw" ["db_id"]=> int(5968) ["menu_item_parent"]=> string(1) "0" ["object_id"]=> string(3) "165" ["object"]=> string(11) "product_cat" ["type"]=> string(8) "taxonomy" ["type_label"]=> string(8) "Category" ["url"]=> string(52) "https://berendsen.com.au/product-category/manifolds/" ["title"]=> string(9) "Manifolds" ["target"]=> string(0) "" ["attr_title"]=> string(0) "" ["description"]=> string(1167) "Manifolds regulate the fluid flow between pumps, actuators and other components in a hydraulic system, allowing the operator to control how much fluid flows between the different components. Berendsen is proud to have developed our own range of standard manifolds and custom designed and manufactured manifolds to meet the needs of a range of industrial applications. Our standard range of manifolds includes station manifolds, CETOP 3 manifolds, CETOP 5 manifolds and sub-plates. Custom Designed and Manufactured Manifolds Manufactured to the highest quality at our ISO certified manufacturing hub in Newcastle, our range includes steel, aluminium and stainless steel manifolds. Our world class CAD manifold design software and the latest technologies applied in our manufacturing process make us the first choice supplier of custom and standard manifolds. Click here for more information on our custom manifold manufacturing capabilities. Our manifold range is currently not available to purchase through our online shop. For product information, pricing and availability regarding our manifold range please fill out a form, call or email us using the links below." ["classes"]=> array(4) { [0]=> string(0) "" [1]=> string(9) "menu-item" [2]=> string(23) "menu-item-type-taxonomy" [3]=> string(28) "menu-item-object-product_cat" } ["xfn"]=> string(0) "" ["cpcm_unfold"]=> string(0) "" ["cpcm_item_count"]=> int(-1) ["cpcm_orderby"]=> string(4) "none" ["cpcm_item_titles"]=> string(11) "%post_title" ["current"]=> bool(false) ["current_item_ancestor"]=> bool(false) ["current_item_parent"]=> bool(false) } [6]=> object(WP_Post)#6919 (44) { ["ID"]=> int(5969) ["post_author"]=> string(3) "649" ["post_date"]=> string(19) "2018-06-20 10:22:23" ["post_date_gmt"]=> string(19) "2018-06-20 00:22:23" ["post_content"]=> string(580) "Berendsen source pneumatic filters, valves and cylinders to assist in compressed air applications. These products are available to suit a variety of applications and are guaranteed to fit your system requirements. Our range of pneumatic filters, valves and cylinders are sourced from well-known brands including Norgren, SMC and Parker. Our pneumatic product range is currently not available to purchase through our online shop. For product information, pricing and availability regarding our pneumatic product range please fill out a form, call or email us using the links below." ["post_title"]=> string(0) "" ["post_excerpt"]=> string(0) "" ["post_status"]=> string(7) "publish" ["comment_status"]=> string(6) "closed" ["ping_status"]=> string(6) "closed" ["post_password"]=> string(0) "" ["post_name"]=> string(4) "5969" ["to_ping"]=> string(0) "" ["pinged"]=> string(0) "" ["post_modified"]=> string(19) "2019-02-11 13:50:59" ["post_modified_gmt"]=> string(19) "2019-02-11 02:50:59" ["post_content_filtered"]=> string(0) "" ["post_parent"]=> int(0) ["guid"]=> string(36) "https://www.berendsen.com.au/?p=5969" ["menu_order"]=> int(7) ["post_type"]=> string(13) "nav_menu_item" ["post_mime_type"]=> string(0) "" ["comment_count"]=> string(1) "0" ["filter"]=> string(3) "raw" ["db_id"]=> int(5969) ["menu_item_parent"]=> string(1) "0" ["object_id"]=> string(3) "166" ["object"]=> string(11) "product_cat" ["type"]=> string(8) "taxonomy" ["type_label"]=> string(8) "Category" ["url"]=> string(61) "https://berendsen.com.au/product-category/pneumatic-products/" ["title"]=> string(18) "Pneumatic Products" ["target"]=> string(0) "" ["attr_title"]=> string(0) "" ["description"]=> string(580) "Berendsen source pneumatic filters, valves and cylinders to assist in compressed air applications. These products are available to suit a variety of applications and are guaranteed to fit your system requirements. Our range of pneumatic filters, valves and cylinders are sourced from well-known brands including Norgren, SMC and Parker. Our pneumatic product range is currently not available to purchase through our online shop. For product information, pricing and availability regarding our pneumatic product range please fill out a form, call or email us using the links below." ["classes"]=> array(4) { [0]=> string(0) "" [1]=> string(9) "menu-item" [2]=> string(23) "menu-item-type-taxonomy" [3]=> string(28) "menu-item-object-product_cat" } ["xfn"]=> string(0) "" ["cpcm_unfold"]=> string(0) "" ["cpcm_item_count"]=> int(-1) ["cpcm_orderby"]=> string(4) "none" ["cpcm_item_titles"]=> string(11) "%post_title" ["current"]=> bool(false) ["current_item_ancestor"]=> bool(false) ["current_item_parent"]=> bool(false) } [7]=> object(WP_Post)#6921 (44) { ["ID"]=> int(5964) ["post_author"]=> string(3) "649" ["post_date"]=> string(19) "2018-06-20 10:12:02" ["post_date_gmt"]=> string(19) "2018-06-20 00:12:02" ["post_content"]=> string(674) "Power steering products, such as control units, steering wheels, pumps and steering columns, assist with controlling and directing fluid pressure. Berendsen source innovative power steering pumps from Eaton Char-Lynn. Our range of Eaton Char-Lynn power steering products includes: Power steering pumps including the VTM Series Steering control units including Series 3, 6, 10, 12 and 20 Steering accessories including wheels and columns Our power steering range is currently not available to purchase through our online shop. For product information, pricing and availability regarding our power steering range please fill out a form, call or email us using the links below." ["post_title"]=> string(0) "" ["post_excerpt"]=> string(0) "" ["post_status"]=> string(7) "publish" ["comment_status"]=> string(6) "closed" ["ping_status"]=> string(6) "closed" ["post_password"]=> string(0) "" ["post_name"]=> string(4) "5964" ["to_ping"]=> string(0) "" ["pinged"]=> string(0) "" ["post_modified"]=> string(19) "2019-02-11 13:50:59" ["post_modified_gmt"]=> string(19) "2019-02-11 02:50:59" ["post_content_filtered"]=> string(0) "" ["post_parent"]=> int(0) ["guid"]=> string(36) "https://www.berendsen.com.au/?p=5964" ["menu_order"]=> int(8) ["post_type"]=> string(13) "nav_menu_item" ["post_mime_type"]=> string(0) "" ["comment_count"]=> string(1) "0" ["filter"]=> string(3) "raw" ["db_id"]=> int(5964) ["menu_item_parent"]=> string(1) "0" ["object_id"]=> string(3) "167" ["object"]=> string(11) "product_cat" ["type"]=> string(8) "taxonomy" ["type_label"]=> string(8) "Category" ["url"]=> string(57) "https://berendsen.com.au/product-category/power-steering/" ["title"]=> string(14) "Power Steering" ["target"]=> string(0) "" ["attr_title"]=> string(0) "" ["description"]=> string(674) "Power steering products, such as control units, steering wheels, pumps and steering columns, assist with controlling and directing fluid pressure. Berendsen source innovative power steering pumps from Eaton Char-Lynn. Our range of Eaton Char-Lynn power steering products includes: Power steering pumps including the VTM Series Steering control units including Series 3, 6, 10, 12 and 20 Steering accessories including wheels and columns Our power steering range is currently not available to purchase through our online shop. For product information, pricing and availability regarding our power steering range please fill out a form, call or email us using the links below." ["classes"]=> array(4) { [0]=> string(0) "" [1]=> string(9) "menu-item" [2]=> string(23) "menu-item-type-taxonomy" [3]=> string(28) "menu-item-object-product_cat" } ["xfn"]=> string(0) "" ["cpcm_unfold"]=> string(0) "" ["cpcm_item_count"]=> int(-1) ["cpcm_orderby"]=> string(4) "none" ["cpcm_item_titles"]=> string(11) "%post_title" ["current"]=> bool(false) ["current_item_ancestor"]=> bool(false) ["current_item_parent"]=> bool(false) } [8]=> object(WP_Post)#6709 (44) { ["ID"]=> int(6055) ["post_author"]=> string(3) "649" ["post_date"]=> string(19) "2018-06-22 11:33:53" ["post_date_gmt"]=> string(19) "2018-06-22 01:33:53" ["post_content"]=> string(1324) "Hydraulic Power Units and Power Packs Hydraulic power units, also referred to as hydraulic power packs, are used to provide hydraulic power through liquid flow and pressure. Our hydraulic power units are suitable for applications such as mining, lubrication systems, industrial, defense, automotive, manufacturing, cardboard waste compactors, marine hook lock systems, agricultural, rotary dairies, grain stackers, produce sorting systems, emergency brake systems for cranes and personal lift systems. Berendsen is proud to supply both a standard range of power units and a custom designed and manufactured power units. Standard Power Units Our standard range of power units are supplied by The Hydraulic Warehouse (THW) and Eaton. Our standard range of THW power units are designed to power hydraulic actuators, including cylinders and motors. Available with a 50L, 100L or 200L tank, the range is ideal for hydraulic systems commonly found in a range of industrial applications. The THW range of Power Units are designed to power hydraulic actuators, including cylinders and motors. Available with a 50L, 100L or 200L tank, the range is ideal for hydraulic systems commonly found in a range of industrial applications. Each power unit can be built and tested within three working days. Custom Designed and Manufactured…" ["post_title"]=> string(0) "" ["post_excerpt"]=> string(0) "" ["post_status"]=> string(7) "publish" ["comment_status"]=> string(6) "closed" ["ping_status"]=> string(6) "closed" ["post_password"]=> string(0) "" ["post_name"]=> string(4) "6055" ["to_ping"]=> string(0) "" ["pinged"]=> string(0) "" ["post_modified"]=> string(19) "2019-02-11 13:50:59" ["post_modified_gmt"]=> string(19) "2019-02-11 02:50:59" ["post_content_filtered"]=> string(0) "" ["post_parent"]=> int(0) ["guid"]=> string(36) "https://www.berendsen.com.au/?p=6055" ["menu_order"]=> int(9) ["post_type"]=> string(13) "nav_menu_item" ["post_mime_type"]=> string(0) "" ["comment_count"]=> string(1) "0" ["filter"]=> string(3) "raw" ["db_id"]=> int(6055) ["menu_item_parent"]=> string(1) "0" ["object_id"]=> string(3) "168" ["object"]=> string(11) "product_cat" ["type"]=> string(8) "taxonomy" ["type_label"]=> string(8) "Category" ["url"]=> string(54) "https://berendsen.com.au/product-category/power-units/" ["title"]=> string(11) "Power Units" ["target"]=> string(0) "" ["attr_title"]=> string(0) "" ["description"]=> string(1324) "Hydraulic Power Units and Power Packs Hydraulic power units, also referred to as hydraulic power packs, are used to provide hydraulic power through liquid flow and pressure. Our hydraulic power units are suitable for applications such as mining, lubrication systems, industrial, defense, automotive, manufacturing, cardboard waste compactors, marine hook lock systems, agricultural, rotary dairies, grain stackers, produce sorting systems, emergency brake systems for cranes and personal lift systems. Berendsen is proud to supply both a standard range of power units and a custom designed and manufactured power units. Standard Power Units Our standard range of power units are supplied by The Hydraulic Warehouse (THW) and Eaton. Our standard range of THW power units are designed to power hydraulic actuators, including cylinders and motors. Available with a 50L, 100L or 200L tank, the range is ideal for hydraulic systems commonly found in a range of industrial applications. The THW range of Power Units are designed to power hydraulic actuators, including cylinders and motors. Available with a 50L, 100L or 200L tank, the range is ideal for hydraulic systems commonly found in a range of industrial applications. Each power unit can be built and tested within three working days. Custom Designed and Manufactured…" ["classes"]=> array(4) { [0]=> string(0) "" [1]=> string(9) "menu-item" [2]=> string(23) "menu-item-type-taxonomy" [3]=> string(28) "menu-item-object-product_cat" } ["xfn"]=> string(0) "" ["cpcm_unfold"]=> string(0) "" ["cpcm_item_count"]=> int(-1) ["cpcm_orderby"]=> string(4) "none" ["cpcm_item_titles"]=> string(11) "%post_title" ["current"]=> bool(false) ["current_item_ancestor"]=> bool(false) ["current_item_parent"]=> bool(false) } [9]=> object(WP_Post)#6860 (44) { ["ID"]=> int(5970) ["post_author"]=> string(3) "649" ["post_date"]=> string(19) "2018-06-20 10:22:23" ["post_date_gmt"]=> string(19) "2018-06-20 00:22:23" ["post_content"]=> string(857) "Tools and equipment are an essential part of hydraulic activity and include products such as general purpose cylinders, centre hole cylinders, double acting cylinders, high tonnage cylinders, hydraulic hand pumps, air hydraulic pumps, electric hydraulic pumps, high pressure hoses and quick couplers, sourced from SPX Power Team. Our tools and equipment range includes products such as: Electric operated pumps Pneumatic operated pumps Mechanical operated pumps Hoses Gauges Nut splitters Hydraulic punches Spreaders Jaw type pullers Push pullers Tire removers Hydraulic testers Torque wrenches Our hydraulic tools and equipment range is currently not available to purchase through our online shop. For product information, pricing and availability regarding our hydraulic tools and equipment, please fill out a form, call or email us using the links below." ["post_title"]=> string(17) "Tools & Equipment" ["post_excerpt"]=> string(0) "" ["post_status"]=> string(7) "publish" ["comment_status"]=> string(6) "closed" ["ping_status"]=> string(6) "closed" ["post_password"]=> string(0) "" ["post_name"]=> string(17) "tools-equipment-2" ["to_ping"]=> string(0) "" ["pinged"]=> string(0) "" ["post_modified"]=> string(19) "2019-02-11 13:50:59" ["post_modified_gmt"]=> string(19) "2019-02-11 02:50:59" ["post_content_filtered"]=> string(0) "" ["post_parent"]=> int(0) ["guid"]=> string(36) "https://www.berendsen.com.au/?p=5970" ["menu_order"]=> int(10) ["post_type"]=> string(13) "nav_menu_item" ["post_mime_type"]=> string(0) "" ["comment_count"]=> string(1) "0" ["filter"]=> string(3) "raw" ["db_id"]=> int(5970) ["menu_item_parent"]=> string(1) "0" ["object_id"]=> string(3) "170" ["object"]=> string(11) "product_cat" ["type"]=> string(8) "taxonomy" ["type_label"]=> string(8) "Category" ["url"]=> string(62) "https://berendsen.com.au/product-category/tools-and-equipment/" ["title"]=> string(17) "Tools & Equipment" ["target"]=> string(0) "" ["attr_title"]=> string(0) "" ["description"]=> string(857) "Tools and equipment are an essential part of hydraulic activity and include products such as general purpose cylinders, centre hole cylinders, double acting cylinders, high tonnage cylinders, hydraulic hand pumps, air hydraulic pumps, electric hydraulic pumps, high pressure hoses and quick couplers, sourced from SPX Power Team. Our tools and equipment range includes products such as: Electric operated pumps Pneumatic operated pumps Mechanical operated pumps Hoses Gauges Nut splitters Hydraulic punches Spreaders Jaw type pullers Push pullers Tire removers Hydraulic testers Torque wrenches Our hydraulic tools and equipment range is currently not available to purchase through our online shop. For product information, pricing and availability regarding our hydraulic tools and equipment, please fill out a form, call or email us using the links below." ["classes"]=> array(4) { [0]=> string(0) "" [1]=> string(9) "menu-item" [2]=> string(23) "menu-item-type-taxonomy" [3]=> string(28) "menu-item-object-product_cat" } ["xfn"]=> string(0) "" ["cpcm_unfold"]=> string(0) "" ["cpcm_item_count"]=> int(-1) ["cpcm_orderby"]=> string(4) "none" ["cpcm_item_titles"]=> string(11) "%post_title" ["current"]=> bool(false) ["current_item_ancestor"]=> bool(false) ["current_item_parent"]=> bool(false) } }

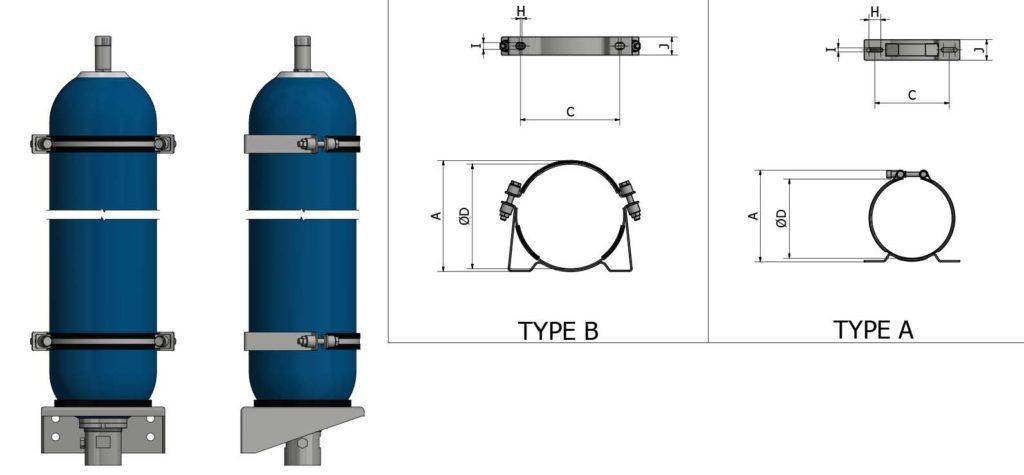

Part Number	Type	ØD (Min/Max)	A	C	I	J	H
20002-C17U-000	A	87 – 97	129	114	9	40	35
20007-C17U-000	A	99 – 109	140	114	9	40	35
20009-C17U-000	A	112 – 124	155	114	9	40	35
20008-C17U-000	A	128 – 138	171	114	9	40	35
20011-C17U-000	A	146 – 157	182	163	9	45	35
20006-C17U-000	A	166 – 176	202	163	9	45	35
20001-C17U-000	B	219 – 232	244	216	15	40	4

Shop Online

Shop At Branch

Shop Online

Shop At Branch

Saddle Clamps

Ordering Guide

Place your Order

20002-C17U-000

20007-C17U-000

20009-C17U-000

20008-C17U-000

20011-C17U-000

20006-C17U-000

20001-C17U-000

20005-C17D-000

20002-C17D-000

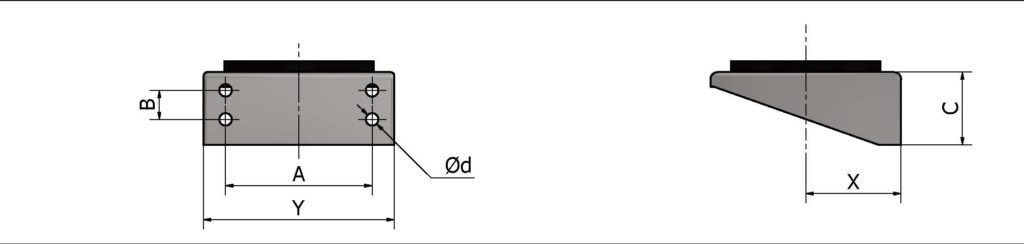

Part Number	ØD	A	B	C	X	Y
20005-C17D-000	17	–	160	80	92	210
20002-C17D-000	17	159	200	100	123	260
