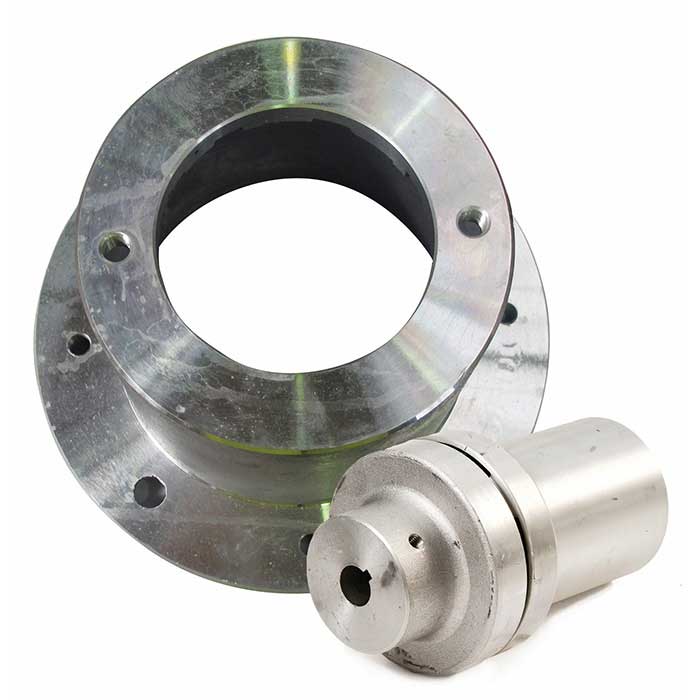

Electric Motor to SAE-B 2 Bolt Mount

The Hydraulic Warehouse
Sale!
electric-motor-SAE-A-2-Bolt-Mount
the hydraulics warehouse logo

Ordering Guide

The ordering guide below provides technical specifications to assist you with your selection. When you are ready to order, simply scroll down to the 'Place your Order' section below the Ordering Guide or click on a part number in the Ordering Guide table.

Electric Motor (hp/kW) 4 Pole Frame Size Bell
Housing Part Number
Electric
Motor Shaft Size (mm)
Motor Half
Coupling Part Number
Pump Shaft Type Pump Half Part Number Spider Part Number
1 / 0.75 80 LBS12B2 19 LC65M12 7/8″ LC65S
2 / 1.5 90 LBS12B2 24 LC65M13 7/8″ LC65S
5.5 / 4.0 100 LBS14B2 28 LC86M14 7/8″ LC86P07 LC86S
5.5 / 4.0 112 LBS14B2 28 LC86M14 7/8″ LC86P07 LC86S
13.4 / 10.0 132 LBS16B2 38 LC86M16 7/8″ LC86P07 LC86S
20.0 / 15.0 160 LBS17B2 42 LC108M17 7/8″ LC108P07 LC108S
30.0 / 22.0 180 LBS17B2 42 LC108M18 7/8″ LC108P07 LC108S

For additional Pump Half Couplings please contact us on 1800 702 114.

Place your Order

To make a purchase, simply scroll down to your desired part number, enter your order quantity in the box provided and then click on the 'Add to cart' button to add the product to your shopping cart.

  • LC86M14

    Brand: The Hydraulic Warehouse
    List Price: $51.67 ex. GSTOur Price: $49.08 ex. GST
  • LBS16B2

    Brand: The Hydraulic Warehouse
    List Price: $150.00 ex. GSTOur Price: $142.50 ex. GST
  • LC65M12

    Brand: The Hydraulic Warehouse
    List Price: $24.83 ex. GSTOur Price: $23.58 ex. GST
  • LC65M13

    Brand: The Hydraulic Warehouse
    List Price: $19.00 ex. GSTOur Price: $18.05 ex. GST
  • LC86M16

    Brand: The Hydraulic Warehouse
    List Price: $58.00 ex. GSTOur Price: $55.10 ex. GST
  • LC108M18

    Brand: The Hydraulic Warehouse
    List Price: $128.00 ex. GSTOur Price: $121.60 ex. GST
  • LC86P07

    Brand: The Hydraulic Warehouse
    List Price: $42.00 ex. GSTOur Price: $39.90 ex. GST
  • LC108P07

    Brand: The Hydraulic Warehouse
    List Price: $57.00 ex. GSTOur Price: $54.15 ex. GST
  • LC65S

    Brand: The Hydraulic Warehouse
    List Price: $7.00 ex. GSTOur Price: $6.65 ex. GST
  • LC86S

    Brand: The Hydraulic Warehouse
    List Price: $10.00 ex. GSTOur Price: $9.50 ex. GST
  • LC108S

    Brand: The Hydraulic Warehouse
    List Price: $14.00 ex. GSTOur Price: $13.30 ex. GST
