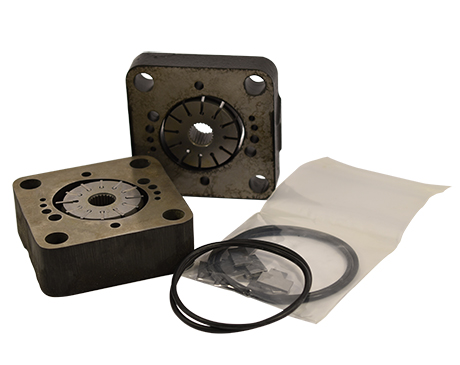

Vane Pump Spare Parts
Vickers by Danfoss Vane Pump Cartridge Kits and Seal Kits are designed to fit Danfoss Power Solutions range of V10, V20 and VQ Intra-Vane Pumps, providing the best performance and reliability in many applications.
Available models
Technical Guide
Part number greyed-out? This means it has temporarily sold out, and will be available again soon. To request an ETA or to order in advance, please contact us on 1800 660 249.
Vickers by Danfoss Vane Pump Cartridge Kits
| Series Name | Part Number | Size (eg V10-1S2S-1C-20) |
| V10 | 02-341775 | -2 |
| 923468 | -5 | |
| 923497 | -6 | |
| 923498 | -7 | |
| V20 | 02-137562 | -8 |
| 02-137565 | -11 | |
| 25VQ 26VQ | 416439 | -12 |
| 416440 | -14 | |
| 416442 | -21 | |
| 45VQ | 416435 | -42 |
| 416436 | -50 | |
| 416437 | -60 | |
Vickers by Danfoss Vane Pump Seal Kits
| Series Name | Part Number | Type |
| V10 | 923548 | BUNA-N |
| 919772 | VITON | |
| V20 | 922733 | BUNA-N |
| 919805 | VITON | |
| VQ (20VQ) | 497123 | BUNA-N |
| VQ (25VQ/30VQ) | 920021 | BUNA-N |
| VQ (35VQ) | 920015 | BUNA-N |
| VQ (45VQ) | 920025 | BUNA-N |
Dimensions
Cartridge Kit Dimensions

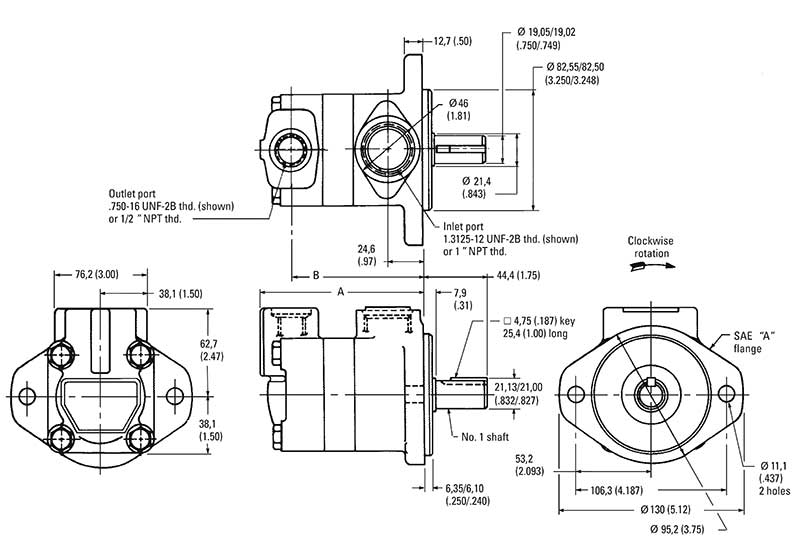

V10

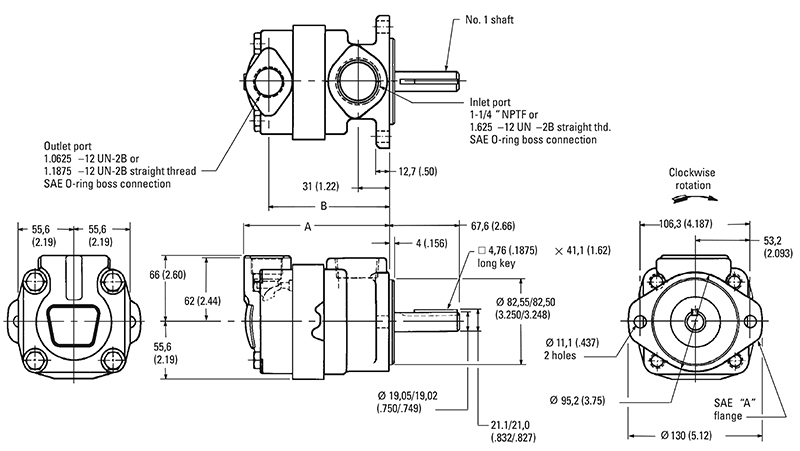

V20
| Series Name | Part Number | A Dim mm (in) | B Dim mm (in) |
| V10 | 02-341775 | 115.6 (4.55) | 91.9 (3.62) |
| 923468 | 121.9 (4.80) | 98.3 (3.87) | |
| 923497 | 127.0 (5.00) | 103.4 (4.07) | |
| 923498 | 127.0 (5.00) | 103.4 (4.07) | |
| V20 | 02-137562 | 131.6 (5.18) | 108.4 (4.27) |
| 02-137565 | 136.6 (5.32) | 1134.5 (4.47) |
