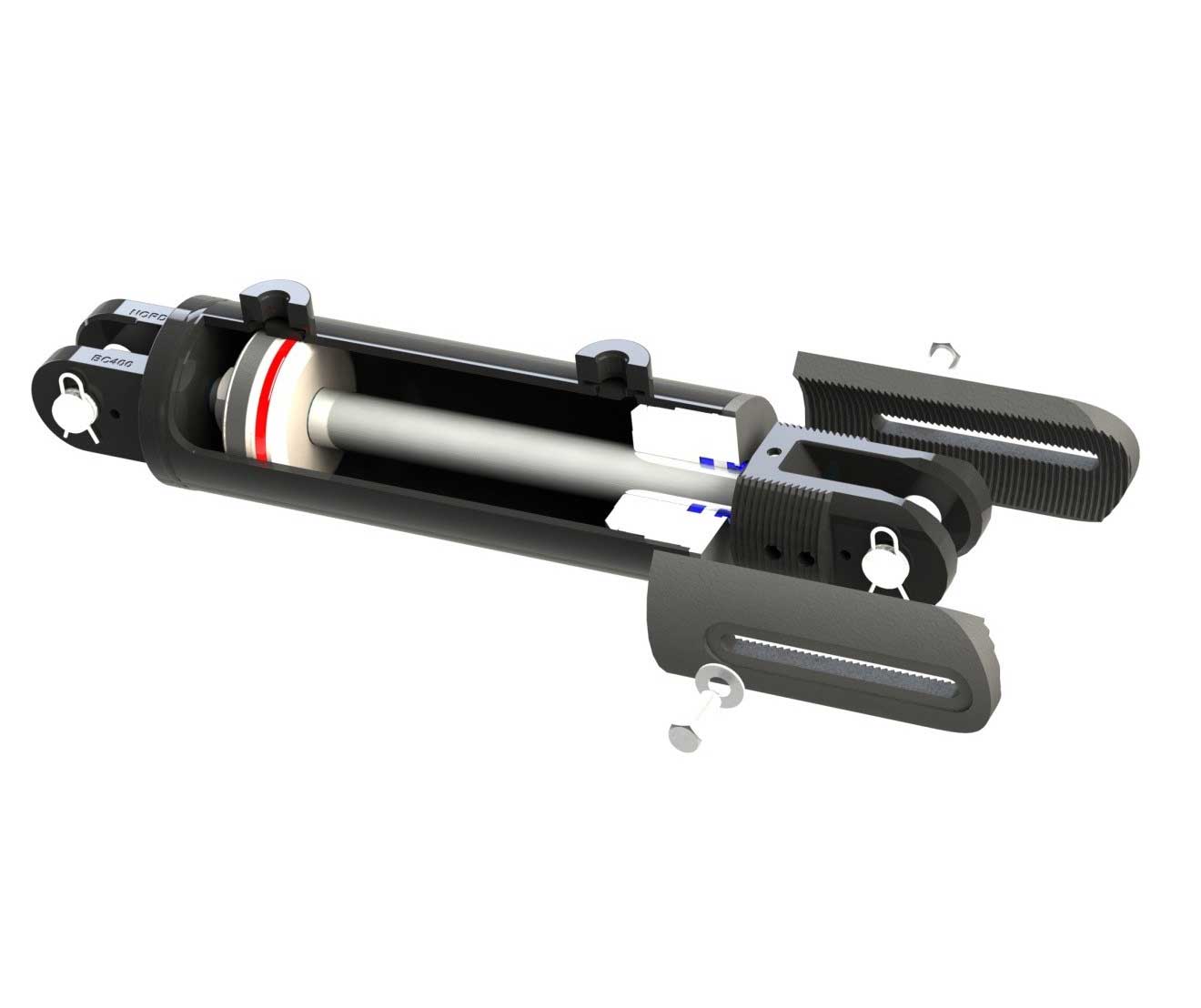

Phasing Cylinders

Available models

Model

Choose an optionPhasing Cylinders - NAP30A08Phasing Cylinders - NAP30A12Phasing Cylinders - NAP325A08Phasing Cylinders - NAP325A12Phasing Cylinders - NAP35A08Phasing Cylinders - NAP35A12Phasing Cylinders - NAP375A08Phasing Cylinders - NAP375A12Phasing Cylinders - NAP40A08Phasing Cylinders - NAP40A12Phasing Cylinders - NAP425A08Phasing Cylinders - NAP425A12Phasing Cylinders - NAP45A08Phasing Cylinders - NAP45A12Phasing Cylinders - NAP475A08Phasing Cylinders - NAP475A12Phasing Cylinders - NAP50A08Phasing Cylinders - NAP50A12Clear

Phasing Cylinders quantity

Add to cart

Phasing Cylinders Contact us

Enquire

Product Enquiry

Name *

Company Name

Email *

Phone

State/Region

Product

Message

Captcha

Submit

If you are human, leave this field blank.

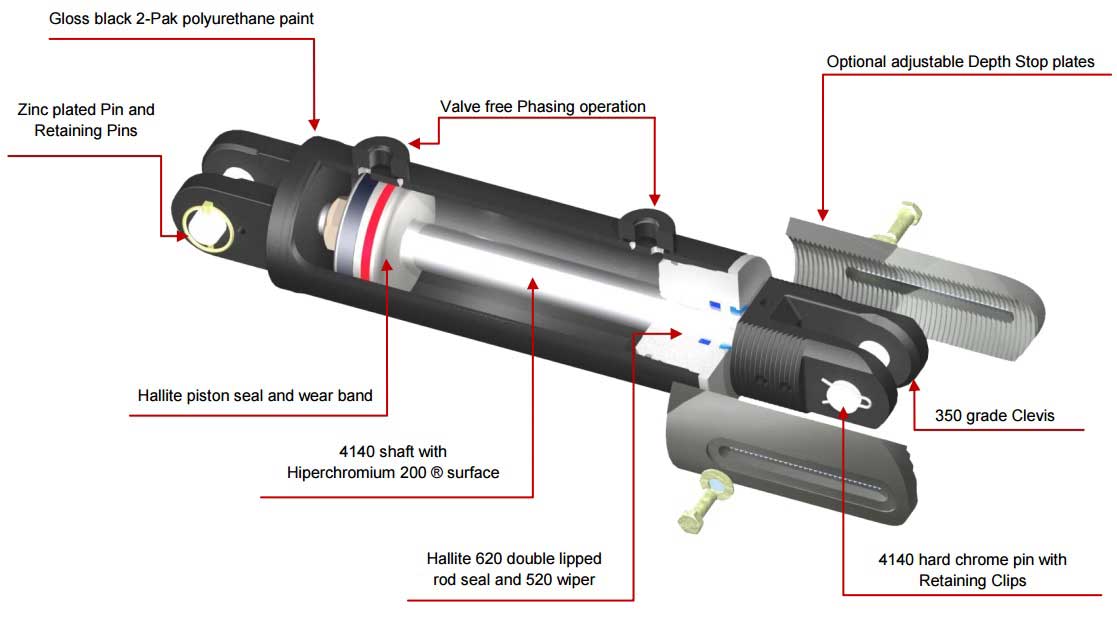

Technical Guide

3″ Bore

Part Number	Stroke (in)	Closed Centre + Stroke (in)	UNO Port (in)	Pin Diameter (in)
NAP30A08	8	12.25	3/4	1
NAP30A12	12	12.25	3/4	1

3.25″ Bore

Part Number	Stroke (in)	Closed Centre + Stroke (in)	UNO Port (in)	Pin Diameter (in)
NAP325A08	8	12.25	3/4	1
NAP325A12	12	12.25	3/4	1

3.5″ Bore

Part Number	Stroke (in)	Closed Centre + Stroke (in)	UNO Port (in)	Pin Diameter (in)
NAP35A08	8	12.25	3/4	1
NAP35A12	12	12.25	3/4	1

3.75″ Bore

Part Number	Stroke (in)	Closed Centre + Stroke (in)	UNO Port (in)	Pin Diameter (in)
NAP375A08	8	12.25	3/4	1
NAP375A12	12	12.25	3/4	1

4″ Bore

Part Number	Stroke (in)	Closed Centre + Stroke (in)	UNO Port (in)	Pin Diameter (in)
NAP40A08	8	12.25	3/4	1
NAP40A12	12	12.25	3/4	1

4.25″ Bore

Part Number	Stroke (in)	Closed Centre + Stroke (in)	UNO Port (in)	Pin Diameter (in)
NAP425A08	8	12.25	3/4	1
NAP425A12	12	12.25	3/4	1

4.5″ Bore

Part Number	Stroke (in)	Closed Centre + Stroke (in)	UNO Port (in)	Pin Diameter (in)
NAP45A08	8	12.25	3/4	1
NAP45A12	12	12.25	3/4	1

4.75″ Bore

Part Number	Stroke (in)	Closed Centre + Stroke (in)	UNO Port (in)	Pin Diameter (in)
NAP475A08	8	12.25	3/4	1
NAP475A12	12	12.25	3/4	1

5″ Bore

Part Number	Stroke (in)	Closed Centre + Stroke (in)	UNO Port (in)	Pin Diameter (in)
NAP50A08	8	12.25	3/4	1
NAP50A12	12	12.25	3/4	1

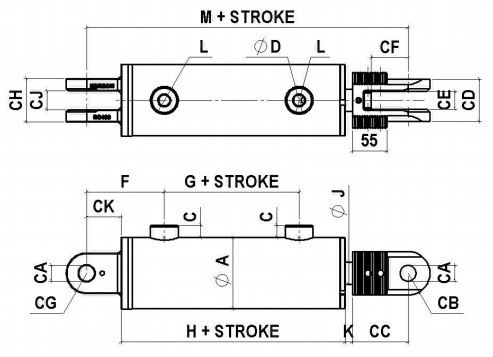

Dimensions

Bore Diameter	3” 76.2	3.25″ 82.55	3.5” 88.9	3.75″ 95.25	4” 101.6	4.25″ 107.95	4.5″ 114.3	4.75″ 120.65	5″ 127
A	89	95	102	108	114	121	127	133	140
C	20	20	20	20	20	20	20	20	20
D	45	45	45	45	45	45	45	45	45
F	115	119	119	124	124	124	124	124	124
G	12	12	13	13	13	13	13	13	13
H	145	145	150	150	150	150	150	150	150
J	1.25″	1.25″	1.25″	1.375″	1.375″	1.375″	1.5″	1.5″	1.5″
K	40	36	17	12	12	12	12	12	12
L	¾ UNO	¾ UNO	¾ UNO	¾ UNO	¾ UNO	¾ UNO	¾ UNO	¾ UNO	¾ UNO
M	311	311	311	311	311	311	311	311	311
*CA	1″	1″	1″	1″	1″	1″	1″	1″	1″
CB	28	28	35	35	35	35	35	35	35
CC	75	75	89	89	89	89	89	89	89
CD	64	64	68	68	68	68	68	68	68
CE	28	28	28	28	28	28	28	28	28
CF	45	45	59	59	59	59	59	59	59
CG	25	33	33	33	33	33	33	33	33
CH	62	70	70	70	70	70	70	70	70
CJ	28	30	30	30	30	30	30	30	30
CK	51	55	55	55	55	55	55	55	55
