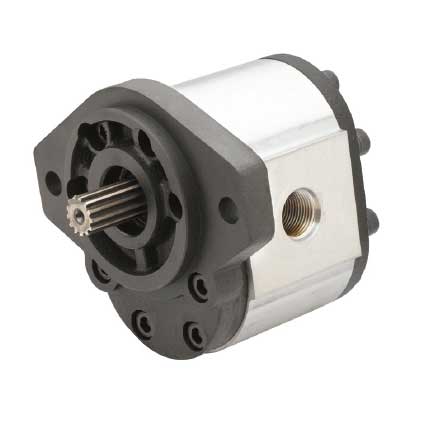

P3A0 SAE-B 2 Bolt Mount

THW produce a range of hydraulic gear pumps, with a variety of shaft and mounting options.
With uses in applications such as agriculture, mining, industry and in mobile equipment, THW leverages off their extensive industry experience to provide cost effective gear pump solutions and parts to the Australian market.

Pumps

Gear Pumps

Aluminium construction with cast iron front and rear housing
Rotation is field reversible

Available models
Technical Guide

Available models

Clear

Part Number	Displacement (cm³/rev)	Continuous Pressure (bar)	Intermittent Pressure (bar)	Max Speed (rpm)	Min Speed (rpm)	Unpacked Weight (kg)
P3A0D22C2U	22	250	265	3500	600	9
P3A0D33C2U	33	230	250	3000	500	9.6
P3A0D46C2U	46	230	250	3000	500	10.2
P3A0D52C2U	52	220	240	3000	500	10.5
P3A0D63C2U	63	200	230	2800	400	10.8

Part Number	Displacement (cm³/rev)	Continuous Pressure (bar)	Intermittent Pressure (bar)	Max Speed (rpm)	Min Speed (rpm)	Unpacked Weight (kg)
P3A0D22S0U	22	250	265	3500	600	9
P3A0D33S0U	33	230	250	3000	500	9.6
P3A0D46S0U	46	230	250	3000	500	10.2
P3A0D52S0U	52	220	240	3000	500	10.5
P3A0D63S0U	63	200	230	2800	400	10.8

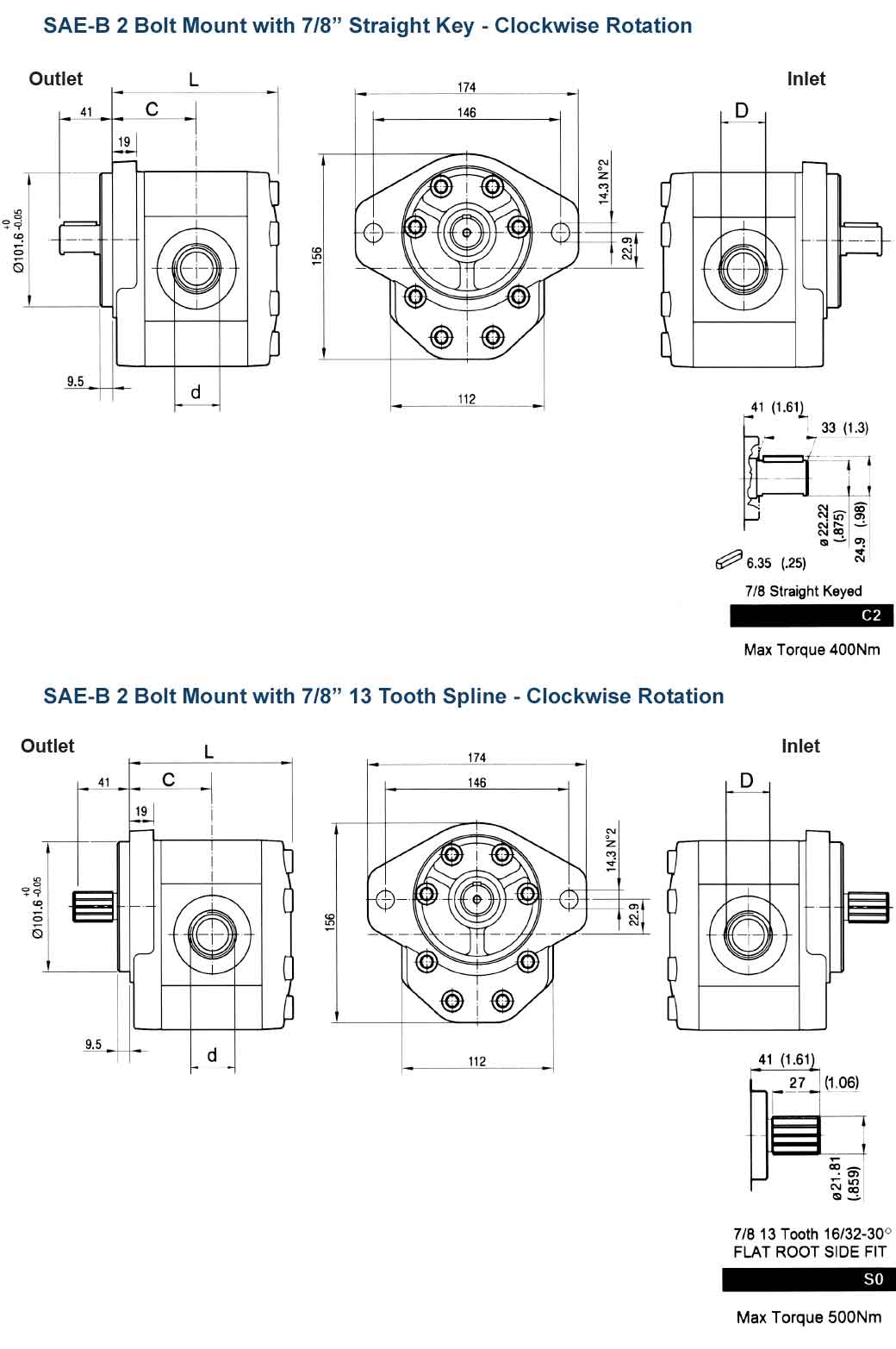

Part Number	L (mm)	C (mm)	Inlet D	Outlet d
P3A0D22*U	130	64	1-5/16″ UNO	1-1/16″ UNO
P3A0D33*U	139	68	1-5/16″ UNO	1-1/16″ UNO
P3A0D46*U	152	75	1-5/8″ UNO	1-1/16″ UNO
P3A0D52*U	156	78	1-5/8″ UNO	1-1/16″ UNO
P3A0D63*U	168	83	1-7/8″ UNO	1-5/16″ UNO

P3A0 SAE-B 2 Bolt Mount

Available models

Technical Guide

Dimensions
