Agricultural Cylinders

Nordon Cylinders
Sale!
nordon-cylinder
NA SeriesNordon Logo

Nordon BA Series cylinders are built for performance and durability, with a wide range of standard options to select from. These agricultural cylinders are designed to handle harsh environmental conditions, preserve a long life-cycle and all conform to ASAE Standards.
Click here to browse our range of seal kits suited to the Nordon BA Series.

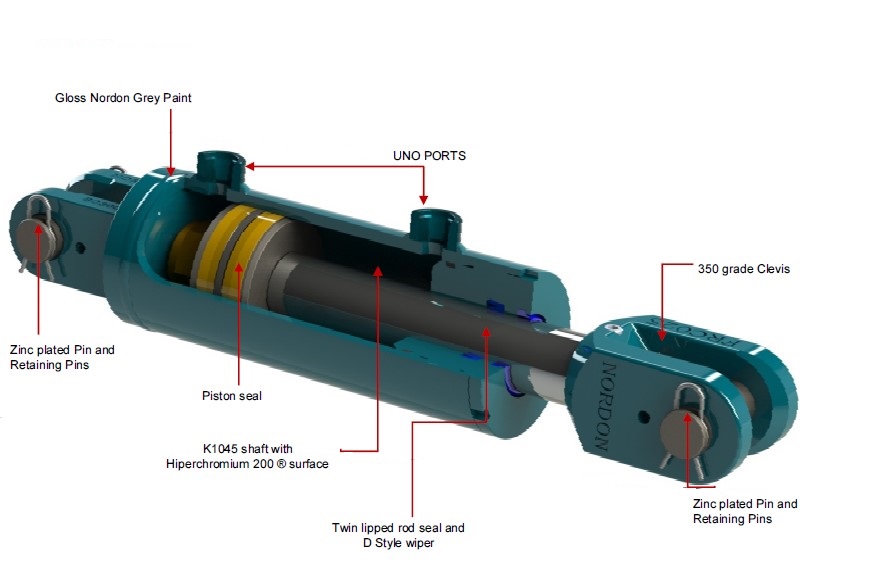

  • Features
  • Dimensions

    Dimensions

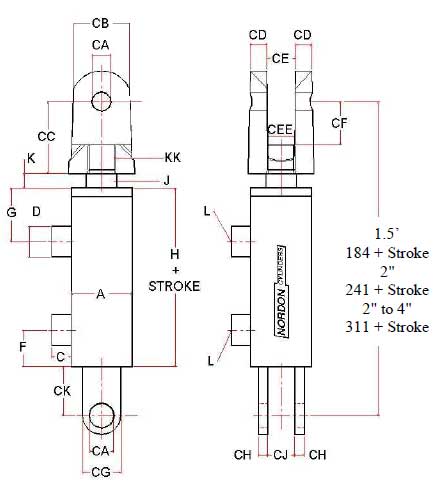

    NA Series Dimensional Drawingdimensions

    Bore Diameter 1.5”
    38.1    		 2”
    50.8    		 2”
    50.8    		 2.5”
    63.5    		 2.5”
    63.5    		 3”
    76.2    		 3.5”
    88.9    		 4”
    101.6
    A 48 60.3 60.3 73 73 88.9 101.6 114.3
    C 12 12 13 13 13 13 13 20
    D 22 22 29 29 29 29 29 31.8
    F (Ref.) 29 31 38 38 38 38 38 38
    G 43 49 53 53 53 61 65 64
    H 104 126 133 143 143 150 163 168
    J ¾’
    19.05    		 1”
    25.4    		 1.25”
    31.75    		 1.25”
    31.75    		 1.5”
    38.1    		 1.5”
    38.1    		 1.75”
    44.45    		 2”
    50.8
    K 14 8 52 42 42 35 8 3
    KK 5/8” 3/4” 1.1/8” 1.1/8” 1.1/8” 1.1/8” 1. ½” 1. ½”
    L 9/16” UNO 9/16” UNO 9/16” UNO ¾” UNO ¾” UNO ¾” UNO ¾’ UNO 7/8” UNO
    CA ½”
    12.7    		 3/4”
    19.05    		 1”
    25.4    		 1”
    25.4    		 1”
    25.4    		 1”
    25.4    		 1”
    25.4    		 1”
    25.4
    CB 38 64 64 64 64 64 70 70
    CC 40 75 75 75 75 75 85 85
    CD 10 16 16 16 16 16 21.5 21.5
    CE 17 28 28 28 28 28 28 28
    CEE 17 28 28 28 28 28 28 28
    CF 26 45 45 45 45 45 55 55
    CG 38 40 40 50 50 50 65 65
    CH 10 12 12 16 16 16 20 20
    CJ 17 28 28 30 30 30 30 30
    CK 26 47 51 51 51 51 55 55

Ordering Guide

The ordering guide below provides technical specifications to assist you with your selection. When you are ready to order, simply scroll down to the 'Place your Order' section below the Ordering Guide or click on a part number in the Ordering Guide table.

1.5″ Bore, 0.75″ Rod

Part Number Stroke (in) Closed Centre + Stroke (in) UNO Port (in) Pin Diameter (in)
BA15A02R07 2 7.25   9/16 1/2
BA15A04R07 4 7.25   9/16 1/2
BA15A06R07 6 7.25   9/16 1/2
BA15A08R07 8 7.25   9/16 1/2
BA15A12R07 12 7.25   9/16 1/2
BA15A20R07 20 7.25   9/16 1/2

2″ Bore, 1″ Rod

Part Number Stroke (in) Closed Centre + Stroke (in) UNO Port (in) Pin Diameter (in)
BA20A06R10 6 9.5   9/16   3/4
BA20A08R10 8 9.5   9/16   3/4
BA20A16R10 16 9.5   9/16   3/4

2″ Bore, 1.25″ Rod

Part Number Stroke (in) Closed Centre + Stroke (in) UNO Port (in) Pin Diameter (in)
BA20A06R125 6 12.25   3/4 1
BA20A08R125 8 12.25   3/4 1
BA20A10R125 10 12.25   3/4 1
BA20A12R125 12 12.25   3/4 1
BA20A16R125 16 12.25   3/4 1
BA20A24R125 24 12.25   3/4 1
BA20A36R125 36 12.25   3/4 1

2.5″ Bore, 1.25″ Rod

Part Number Stroke (in) Closed Centre + Stroke (in) UNO Port (in) Pin Diameter (in)
BA25A06R12 6 12.25   3/4 1
BA25A08R12 8 12.25   3/4 1

2.5″ Bore, 1.5″ Rod

Part Number Stroke (in) Closed Centre + Stroke (in) UNO Port (in) Pin Diameter (in)
BA25A06R15 6 12.25   3/4 1
BA25A08R15 8 12.25   3/4 1
BA25A12R15 12 12.25   3/4 1
BA25A16R15 16 12.25   3/4 1
BA25A18R15 18 12.25   3/4 1
BA25A20R15 20 12.25   3/4 1
BA25A24R15 24 12.25   3/4 1
BA25A30R15 30 12.25   3/4 1
BA25A36R15 36 12.25   3/4 1
BA25A48R15 48 12.25   3/4 1

3″ Bore, 1.5″ Rod

Part Number Stroke (in) Closed Centre + Stroke (in) UNO Port (in) Pin Diameter (in)
BA30A08R15 8 12.25   3/4 1
BA30A10R15 10 12.25   3/4 1
BA30A12R15 12 12.25   3/4 1
BA30A16R15 16 12.25   3/4 1
BA30A18R15 18 12.25   3/4 1
BA30A24R15 24 12.25   3/4 1
BA30A48R15 48 12.25   3/4 1

3.5″ Bore, 1.75″ Rod

Part Number Stroke (in) Closed Centre + Stroke (in) UNO Port (in) Pin Diameter (in)
BA35A08R175 8 12.25   3/4 1
BA35A12R175 12 12.25   3/4 1
BA35A16R175 16 12.25   3/4 1
BA35A18R175 18 12.25   3/4 1

4″ Bore, 2″ Rod

Part Number Stroke (in) Closed Centre + Stroke (in) UNO Port (in) Pin Diameter (in)
BA40A08R20 8 12.25   7/8 1
BA40A12R20 12 12.25   7/8 1
BA40A16R20 16 12.25   7/8 1
BA40A24R20 24 12.25   7/8 1
BA40A36R20 36 12.25   7/8 1

Place your Order

To make a purchase, simply scroll down to your desired part number, enter your order quantity in the box provided and then click on the 'Add to cart' button to add the product to your shopping cart.

  • BA15A20R07

    Brand: Nordon Cylinders
    List Price: $616.00 ex. GSTOur Price: $462.00 ex. GST
