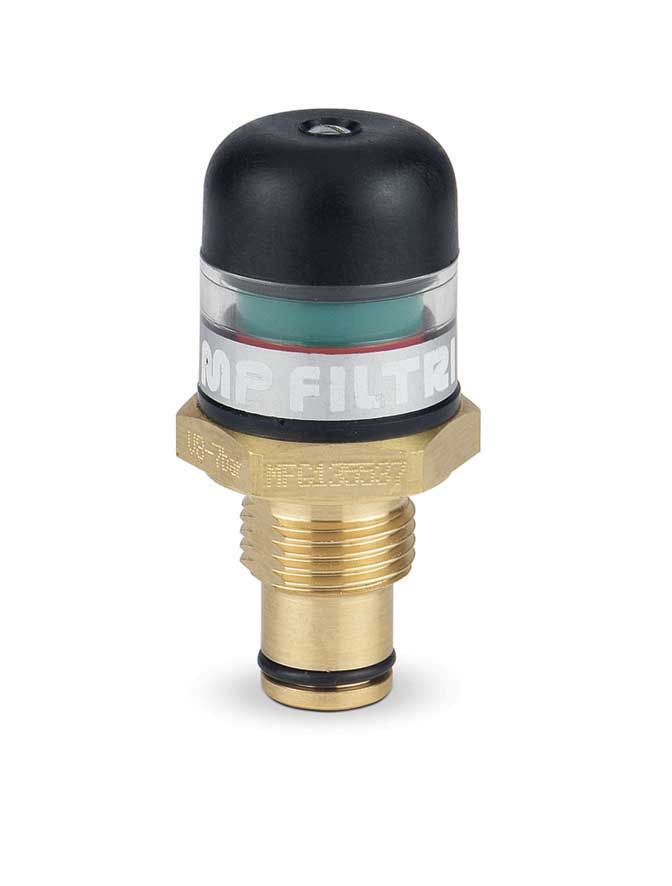

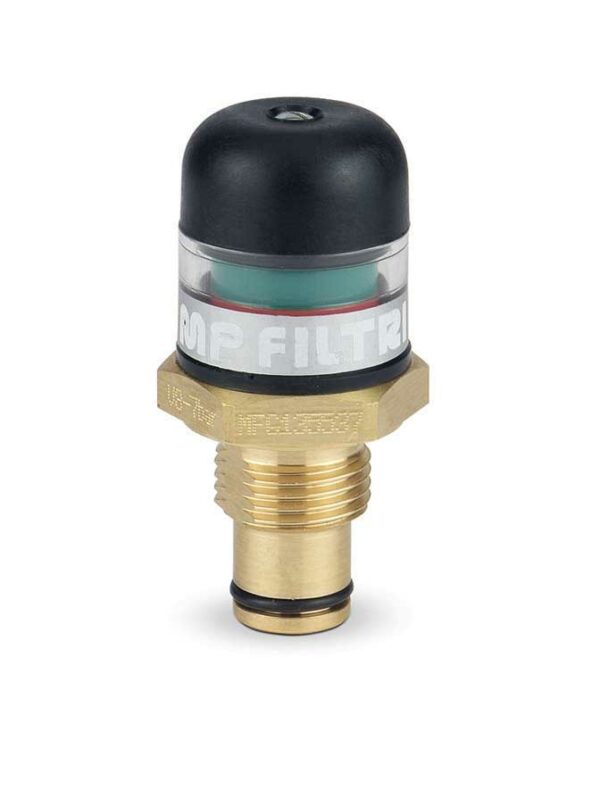

Visual Series
MP Filtri indicators are available as Clogging (monitoring the increase of pressure on the inlet port of the filter) or Differential (monitoring the difference of pressure between inlet and outlet ports).
Available models
Technical Guide
| Part Number | Style | Type | Function | Thread | Bar Rating | Suits Filter |
|---|---|---|---|---|---|---|
| 1V | POPUP | VISUAL | DIFFERENTIAL | 1/2″ BSP | 1.2 | MPS-(051, 071, 101) |
| V6 | POPUP | VISUAL | DIFFERENTIAL | 1/2″ BSP | 2 | LMP, MSH, MPS-(051, 071, 101) |
| V7 | POPUP | VISUAL | DIFFERENTIAL | 1/2″ BSP | 5 | FHM, FHP, FMM, FMP |
| V8 | POPUP | VISUAL | DIFFERENTIAL | 1/2″ BSP | 7 | FHM, FHP, FMM, FMP |
| V9-1 | POPUP | VISUAL | DIFFERENTIAL | 1/2″ BSP | 10 | FHM, FHP |
| VR | GAUGE | VISUAL | COLOUR CODED | 1/8″ BSP | 0 – 6 | MPF-184, MPT, MPH, MST, MPS-(050, 070, 100, 200, 300) |
| V | GAUGE | VISUAL | SUCTION | 1/4″ BSP | 20 KPA | SF2-250 & SF2-500 SERIES |
| V1 | GAUGE | VISUAL | COLOUR CODED | 1/8″ BSP | 0 – 6 | MPF, MPH |
| VS | GAUGE | VISUAL | SUCTION | 1/8″ BSP | 0 – 76 cm Hg | MPS-(050, 070, 100, 200, 300) |
| VT | GAUGE | VISUAL | COLOUR CODED | 1/8″ BSP | 0 – 3 | MPH |
| Z1 | POPUP | VISUAL | DIFFERENTIAL | 1/2″ BSP | 1.2 | MPS-(051, 071, 101) |

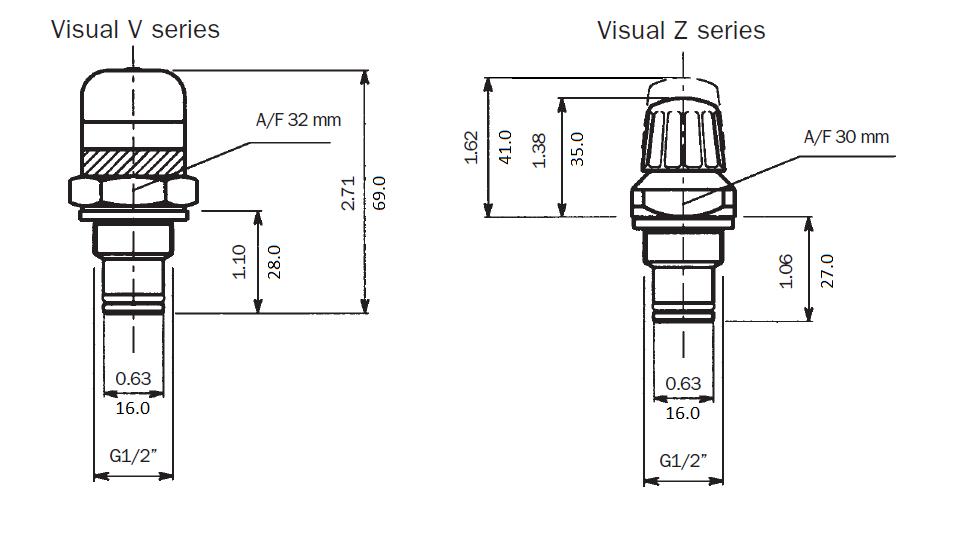

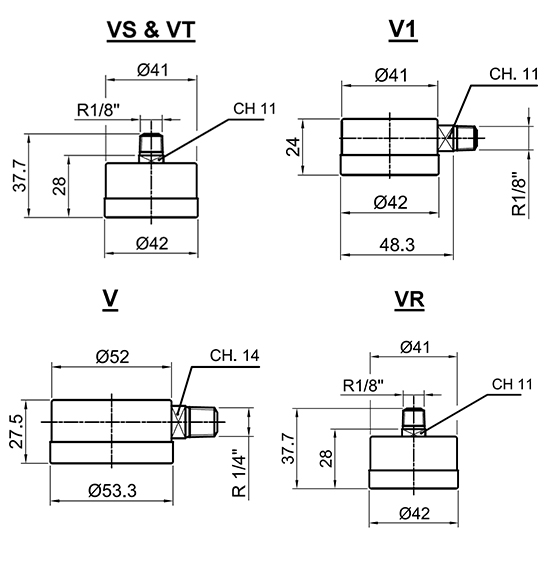

Dimensions
All dimensions in inch / mm
