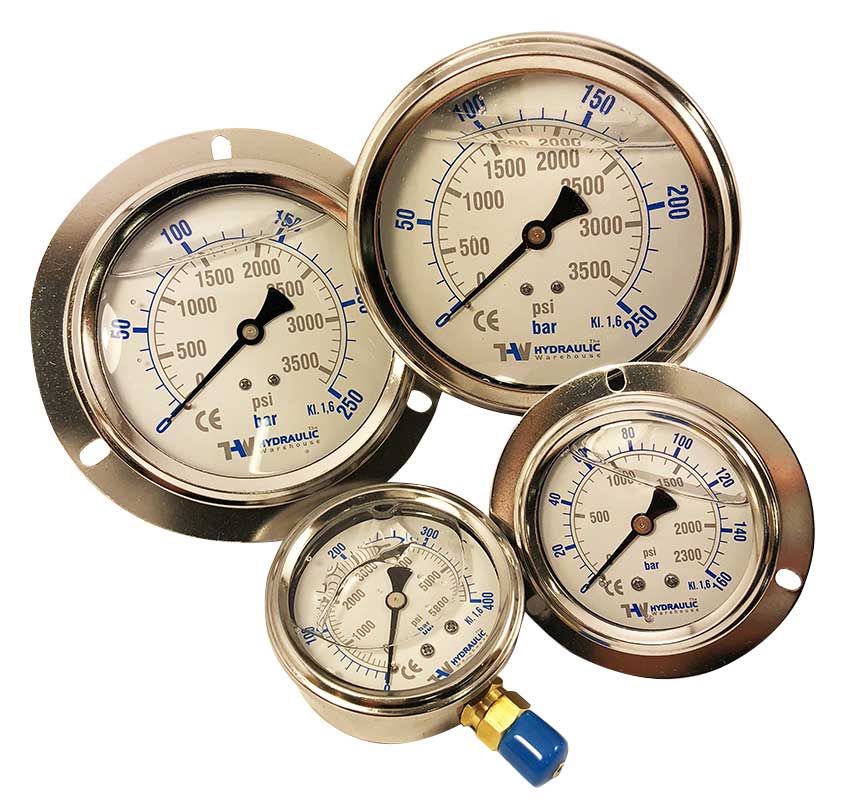

Pressure Gauges

The Hydraulic Warehouse’s Pressure Gauges are supplied with a bottom or rear mount and have a pressure range of up to 400 bar. These Pressure Gauges have a stainless steel case and are filled with glycerine allowing for more enhanced performance and durability.

Accessories

Gauges

Pressure range up to 400 bar
Gauge diameter ranging from 63mm to 100mm
Stainless steel case, filled with glycerine
Operational temperature from -25 to 60°C

Available models
Technical Guide

Available models

Clear

Part Number	Mount	Thread	Face Diameter (mm)	Pressure Range (bar)
PG-B-63-60	Bottom	1/4″ BSP	63	0 – 60
PG-B-63-160	Bottom	1/4″ BSP	63	0 – 160
PG-B-63-250	Bottom	1/4″ BSP	63	0 – 250
PG-B-63-400	Bottom	1/4″ BSP	63	0 – 400
PG-B-100-60	Bottom	1/2″ BSP	100	0 – 60
PG-B-100-160	Bottom	1/2″ BSP	100	0 – 160
PG-B-100-250	Bottom	1/2″ BSP	100	0 – 250
PG-B-100-400	Bottom	1/2″ BSP	100	0 – 400
PG-R-63-60	Rear	1/4″ BSP	63	0 – 60
PG-R-63-160	Rear	1/4″ BSP	63	0 – 160
PG-R-63-250	Rear	1/4″ BSP	63	0 – 250
PG-R-63-400	Rear	1/4″ BSP	63	0 – 400
PG-R-100-60	Rear	1/2″ BSP	100	0 – 60
PG-R-100-160	Rear	1/2″ BSP	100	0 – 160
PG-R-100-250	Rear	1/2″ BSP	100	0 – 250
PG-R-100-400	Rear	1/2″ BSP	100	0 – 400

Pressure Gauges

Available models

Technical Guide

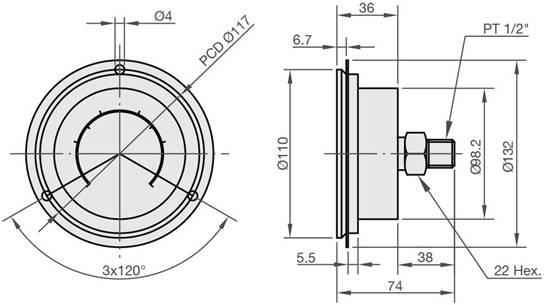

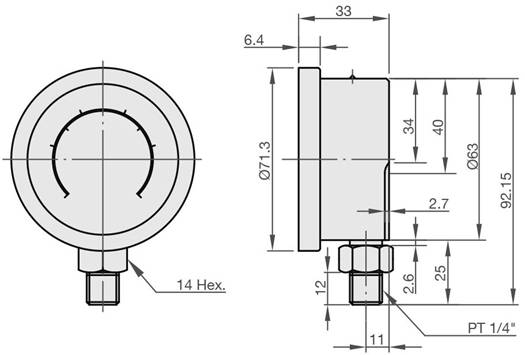

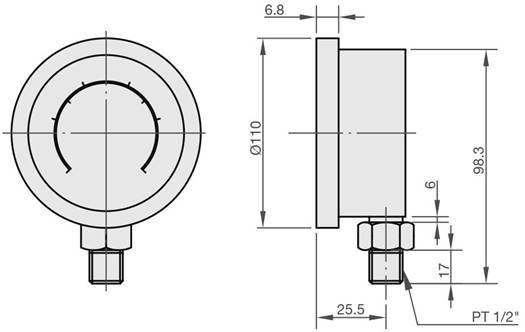

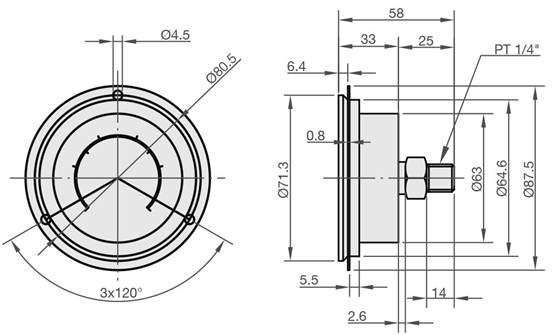

Dimensions
