Pressure Compensated Flow Control Valves

Available models

Pressure Compensated Flow Control Valves

Click here to view our range of Brand Hydraulics Pressure Compensated Flow Control Valves.

Pressure Compensated Flow Control Valves Enquire

Technical Guide

Line Mounted, 2 Way Pressure Compensated Flow Regulator

Part Number	Schematic	Flow Rate (L/min)	Adjustment Range (bar)	Max Pressure (bar)	Port Sizes
FPRBC-3/4-G		90	250	210	G3/4

Inline, 3 Way Pressure Compensated Flow Regulator

Part Number	Schematic	Flow Rate (L/min)	Adjustment Range (bar)	Max Pressure (bar)	Port Sizes
FPVP-1/2-G		50	250	210	G1/2
FPVP-3/4-G		90	250	210	G3/4

Line Mounted, 3 Way Pressure Compensated Flow Regulator

Part Number	Schematic	Flow Rate (L/min)	Adjustment Range (bar)	Max Pressure (bar)	Port Sizes

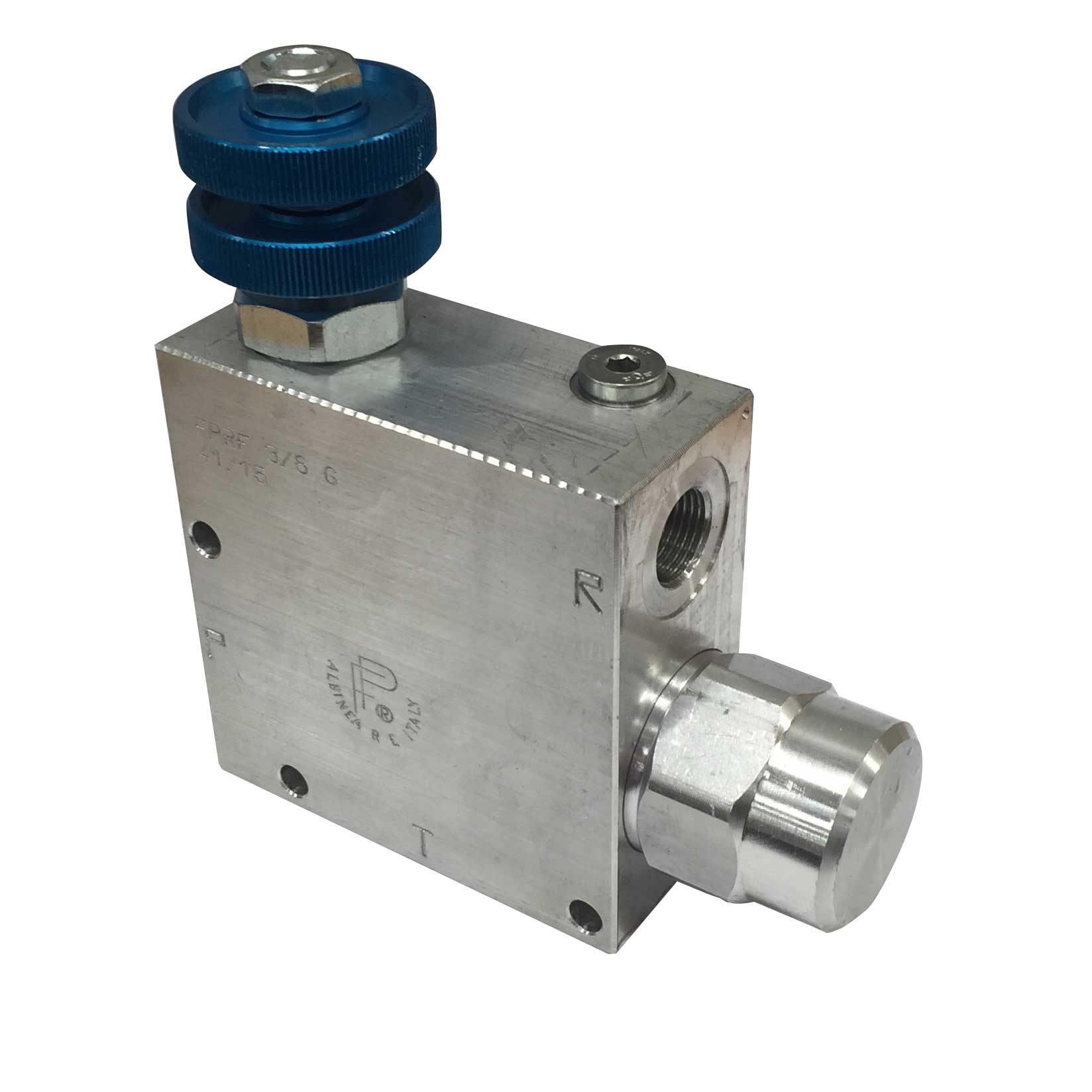

FPRF-3/8-G		30	250	210	G3/8
FPRF-1/2-G		50	250	210	G1/2
FPRF-3/4-G		90	250	210	G3/4

Dimensions

FPRBC-3/4-G

Unit of measurement: mm

FPVP-1/2-G

Unit of measurement: mm

FPVP-3/4-G

Unit of measurement: mm

FPRF-3/8-G and FPRF-1/2-G

Unit of measurement: mm

FPRF-3/4-G

Unit of measurement: mm
