Over Centre Valves

Fluid-Press
Sale!
Hydraulic-Over-Centre-Valves
LOGO FLUID-PRESS

Ordering Guide

The ordering guide below provides technical specifications to assist you with your selection. When you are ready to order, simply scroll down to the 'Place your Order' section below the Ordering Guide or click on a part number in the Ordering Guide table.

Over Centre Valve, Cartridge Version

Part Number Schematic Flow Rate (L/min) Adjustment Range (bar) Max Pressure (bar) Cavity Pilot Ratio

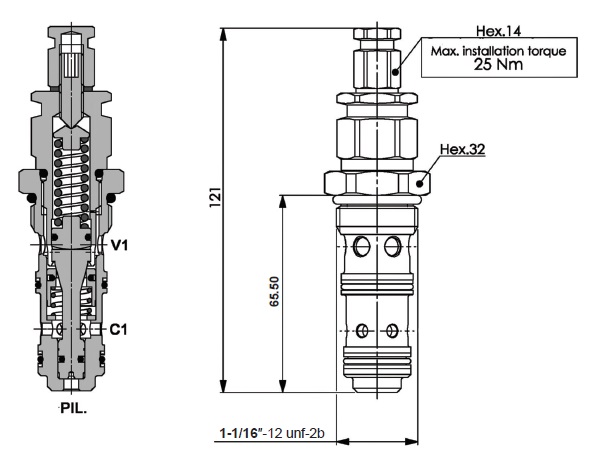

FPO-50-C-35 overcentrevalves_features_fpo-50-c-35-copy 50 80-350 350 33123 4.25:1

Line Mounted, Single Over Centre Valve

Part Number Schematic Flow Rate (L/min) Adjustment Range (bar) Max Pressure (bar) Port Sizes Pilot Ratio
FPO-50-S-3/8-L-20    overcentrevalves_features_fpo-50-s-3-8-l-20-copy 30 60-210 350 G3/8 / G1/4 4.25:1

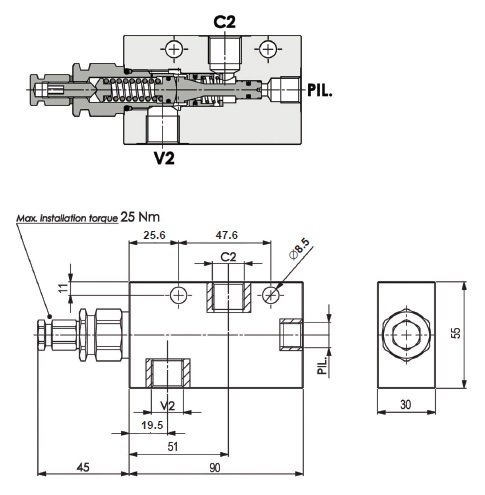

FPO-50-S-3/8-L-35 30 80-350 350 G3/8 / G1/4 4.25:1
FPO-50-S-1/2-L-20 50 60-210 350 G1/2 / G1/4 4.25:1

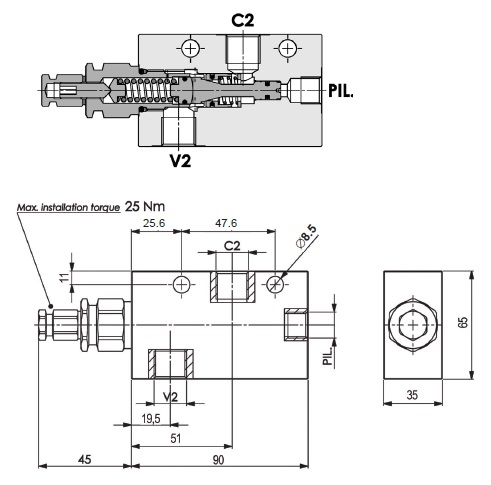

Line Mounted, Partially Balanced Single Over Centre Valve, External Pilot

Part Number Schematic Flow Rate (L/min) Adjustment Range (bar) Max Pressure (bar) Port Sizes Pilot Ratio
FPO-50-S-1/2-L-35  overcentrevalves_features_fpo-50-s-1-2-l-35-copy 50 80-350 350 G1/2 / G1/4 4.25:1

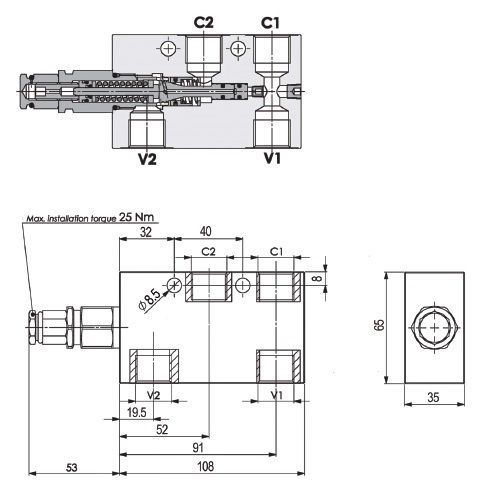

Line Mounted, Partially Balanced Single Over Centre Valve, Internal Pilot

Part Number Schematic Flow Rate (L/min) Adjustment Range (bar) Max Pressure (bar) Port Sizes Pilot Ratio
FPOB-50-S-1/2-LP-35  overcentrevalves_features_fpob-50-s-1-2-lp-35-copy 50 80-350 350 G1/2 4.25:1

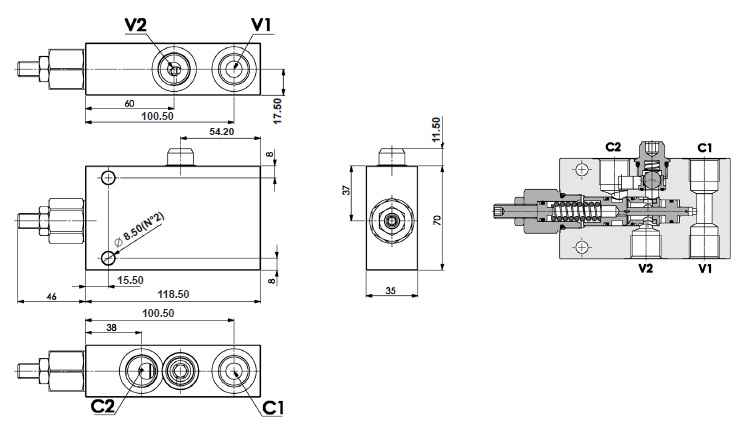

Line Mounted, Single Over Centre Valve, Internal Pilot – E Series

Part Number Schematic Flow Rate (L/min) Adjustment Range (bar) Max Pressure (bar) Port Sizes Pilot Ratio
FPOE-70-S-1/2-LPA-35  overcentrevalves_features_fpoe-70-s-1-2-lpa-35-copy 70 120-350 210 G1/2 3.2:1

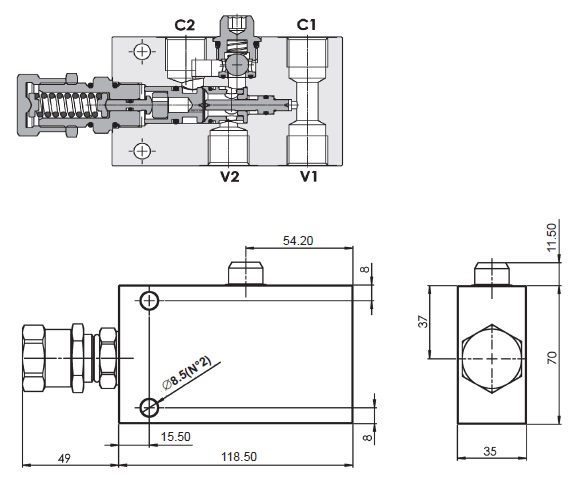

Line Mounted, Partially Balanced Over Centre Valve – E Series

Part Number Schematic Flow Rate (L/min) Adjustment Range (bar) Max Pressure (bar) Port Sizes Pilot Ratio
FPOEB-70-S-1/2-LPA-35  fpoeb-70-s 70 120-350 210 G1/2 3.2:1

Inline Mounted, Dual Over Centre Valve – E Series

Part Number Schematic Flow Rate (L/min) Adjustment Range (bar) Max Pressure (bar) Port Sizes Pilot Ratio
FPOE-40-D-3/8-LA-20-B      overcentrevalves_features_fpoe-40-d-3-8-la-35-copy 40 60-210 210 G3/8 6.6:1
FPOE-40-D-3/8-LA-20 40 60-210 210 G3/8 2.9:1

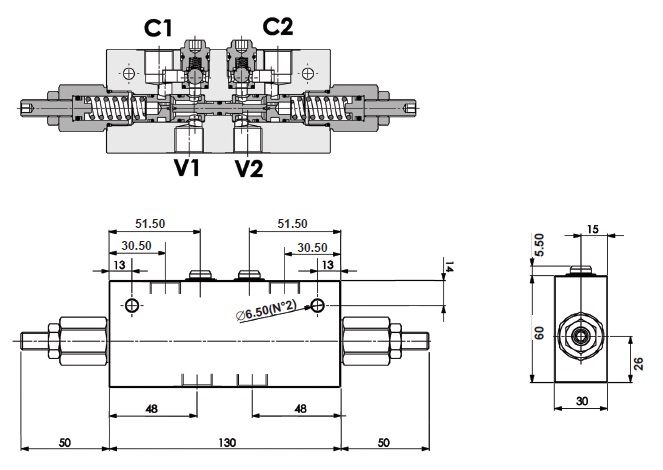

FPOE-40-D-3/8-LA-35 40 120-350 210 G3/8 2.9:1

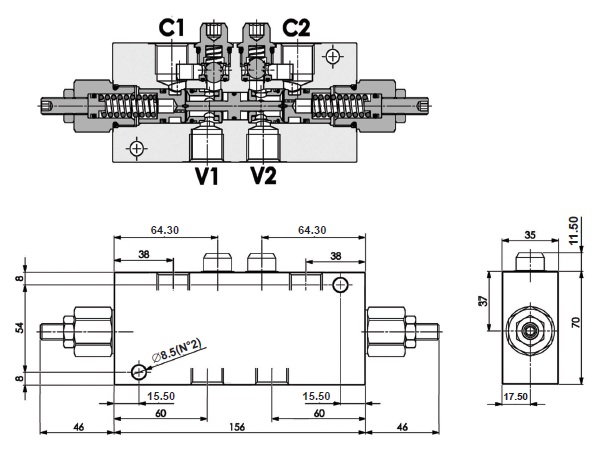

FPOE-70-D-1/2-LA-20-B 70 60-210 210 G1/2 8.2:1
FPOE-70-D-1/2-LA-35-B 70 120-350 210 G1/2 8.2:1

Line Mounted, Partially Balanced Dual Over Centre Valve – E Series

Part Number Schematic Flow Rate (L/min) Adjustment Range (bar) Max Pressure (bar) Port Sizes Pilot Ratio

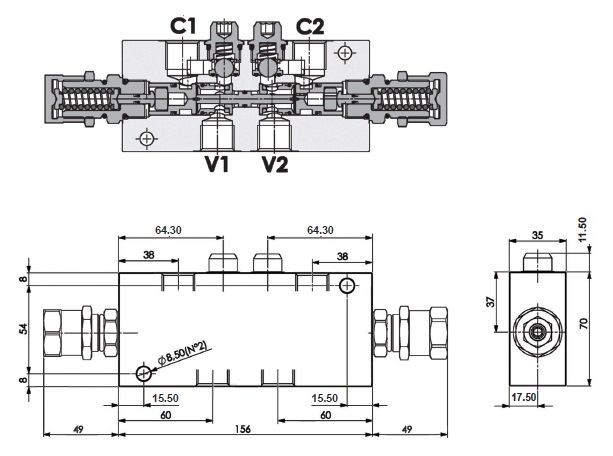

FPOEB-70-D-1/2-LA-35   overcentrevalves_features_fpoeb-70-d-1-2-la-35-copy 70 120-350 210 G1/2 3.2:1
FPOEB-70-D-1/2-LA-35-B 70 120-350 210 G1/2 8.2:1

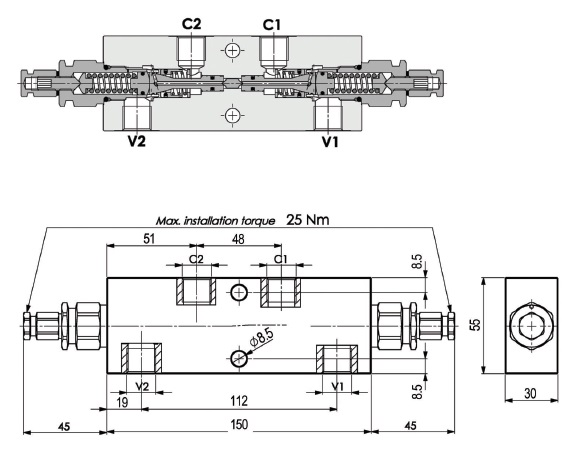

Line Mounted, Dual Over Centre Valve

Part Number Schematic Flow Rate (L/min) Adjustment Range (bar) Max Pressure (bar) Port Sizes Pilot Ratio
FPO-50-D-3/8-L-20  overcentrevalves_features_fpo-50-d-3-8-l-20-copy 30 60-210 350 G3/8 4.25:1

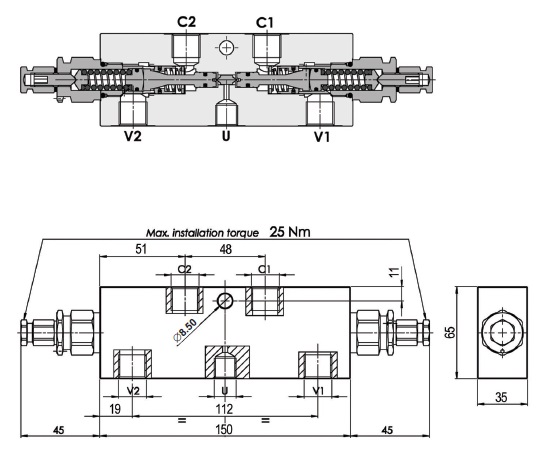

Line Mounted, Dual Over Centre Valve with Brake Release Port

Part Number Schematic Flow Rate (L/min) Adjustment Range (bar) Max Pressure (bar) Port Sizes Pilot Ratio
FPO-50-D-1/2-L-U-20  overcentrevalves_features_fpo-50-d-1-2-l-u-20-copy 50 60-210 350 G1/2 4.25:1

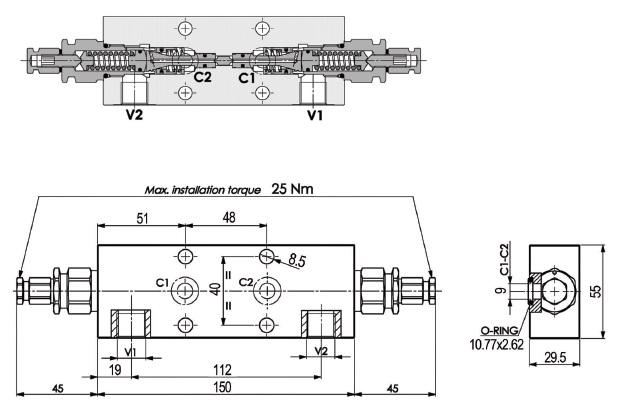

Manifold Mounted, Dual Over Centre Valve

Part Number Schematic Flow Rate (L/min) Adjustment Range (bar) Max Pressure (bar) Port Sizes Pilot Ratio
FPO-50-D-3/8-2F-20  overcentrevalves_features_fpo-50-d-3-8-2f-20-copy 30 60-210 350 G3/8 4.25:1

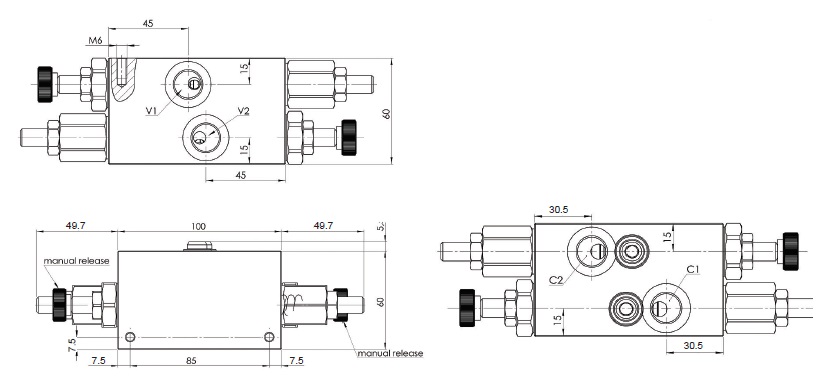

Line Mounted, Dual Over Centre Valve with Manual Override

Part Number Schematic Flow Rate (L/min) Adjustment Range (bar) Max Pressure (bar) Port Sizes Pilot Ratio
FP-11I-0008  overcentrevalves_features_fp-11i-0008-copy 40 250 210 G3/8 4.5:1

Place your Order

To make a purchase, simply scroll down to your desired part number, enter your order quantity in the box provided and then click on the 'Add to cart' button to add the product to your shopping cart.

  • FPO-50-D-1/2-L-U-20

    Brand: Fluid-Press
    List Price: $519.68 ex. GSTOur Price: $493.70 ex. GST
  • FPOE-70-D-1/2-LA-20-B

    Brand: Fluid-Press
    List Price: $518.77 ex. GSTOur Price: $492.83 ex. GST
  • FPOE-70-D-1/2-LA-35-B

    Brand: Fluid-Press
    List Price: $518.77 ex. GSTOur Price: $492.83 ex. GST
  • FPOEB-70-D-1/2-LA-35

    Brand: Fluid-Press
    List Price: $586.26 ex. GSTOur Price: $556.95 ex. GST
  • FPOEB-70-D-1/2-LA-35-B

    Brand: Fluid-Press
    List Price: $586.26 ex. GSTOur Price: $556.95 ex. GST
  • FPO-50-D-3/8-L-20

    Brand: Fluid-Press
    List Price: $468.59 ex. GSTOur Price: $445.16 ex. GST
  • FPO-50-D-3/8-2F-20

    Brand: Fluid-Press
    List Price: $481.69 ex. GSTOur Price: $457.61 ex. GST
  • FP-11I-0008

    Brand: Fluid-Press
    List Price: $469.00 ex. GSTOur Price: $445.55 ex. GST
  • FPO-50-C-35

    Brand: Fluid-Press
    List Price: $227.98 ex. GSTOur Price: $216.58 ex. GST
  • FPOE-70-S-1/2-LPA-35

    Brand: Fluid-Press
    List Price: $318.01 ex. GSTOur Price: $302.11 ex. GST
  • FPO-50-S-1/2-L-35

    Brand: Fluid-Press
    List Price: $260.96 ex. GSTOur Price: $247.91 ex. GST
  • FPO-50-S-1/2-L-20

    Brand: Fluid-Press
    List Price: $260.96 ex. GSTOur Price: $247.91 ex. GST
  • FPO-50-S-3/8-L-35

    Brand: Fluid-Press
    List Price: $246.96 ex. GSTOur Price: $234.61 ex. GST
  • FPO-50-S-3/8-L-20

    Brand: Fluid-Press
    List Price: $246.96 ex. GSTOur Price: $234.61 ex. GST
  • FPOEB-70-S-1/2-LPA-35

    Brand: Fluid-Press
    List Price: $350.66 ex. GSTOur Price: $333.13 ex. GST
  • FPOE-40-D-3/8-LA-35

    Brand: Fluid-Press
    List Price: $463.05 ex. GSTOur Price: $439.90 ex. GST
  • FPOE-40-D-3/8-LA-20-B

    Brand: Fluid-Press
    List Price: $463.05 ex. GSTOur Price: $439.90 ex. GST
  • FPOE-40-D-3/8-LA-20

    Brand: Fluid-Press
    List Price: $463.05 ex. GSTOur Price: $439.90 ex. GST
