GM08 Spare Parts

The Hydraulic Warehouse offers a range of GM monoblock valves that are available in two sizes (45 and 90 LPM).
Available in a parallel circuit, the GM08 directional control valves have a robust and functional design to suit the mobile market.
A range of control functions are readily available to suit many applications, and special builds can be supplied on request.

  • Number of Spools: 1-6
  • Spool Diameter: 16mm
  • Nominal Flow:45 LPM
  • Maximum Pressure on P, A & B Ports. Bar (psi): 350 (5075)
  • Maximum Pressure on T Port. Bar (psi): 50 (725)
  • Inlet Relief Valve Adjustment Range. Bar (psi): 10-300 (145 – 4350)
  • Hydraulic Fluid: Mineral Oil to DIN 51524
  • Viscosity Range: 12-400 cSt
  • Fluid Temperature Range: -20°C to 80°C
  • Maximum Contamination Level:
    • o ISO 4406 – Class 19/16
    • o NAS 1638 – Class 10
  • Ambient Temperature Range: -40°C to 60°C

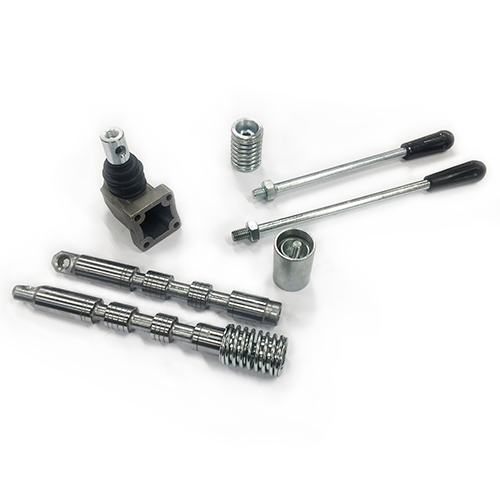

monoblock-spare-part
monoblock-spare-part
