Home Accessories Foot Mounts

About the product

Foot Mounts

Available models
Technical Guide

Available models

Model

Foot Mounts quantity

Foot Mounts

Enquire

Product Enquiry

Name *

Company Name

Email *

Phone

State/Region

Product

Message

I agree to receive news, updates, and marketing communications

If you are human, leave this field blank.

Technical Guide

Foot Mounts

Part Number	Mount	Model
422582	SAE-A	FB-A-10
422583	SAE-B	FB-B-10

Please Note: 2 bolts are supplied to mount the pump/motor onto the Foot Mount. You will require your own fixing bolts to mount the foot of the bracket.

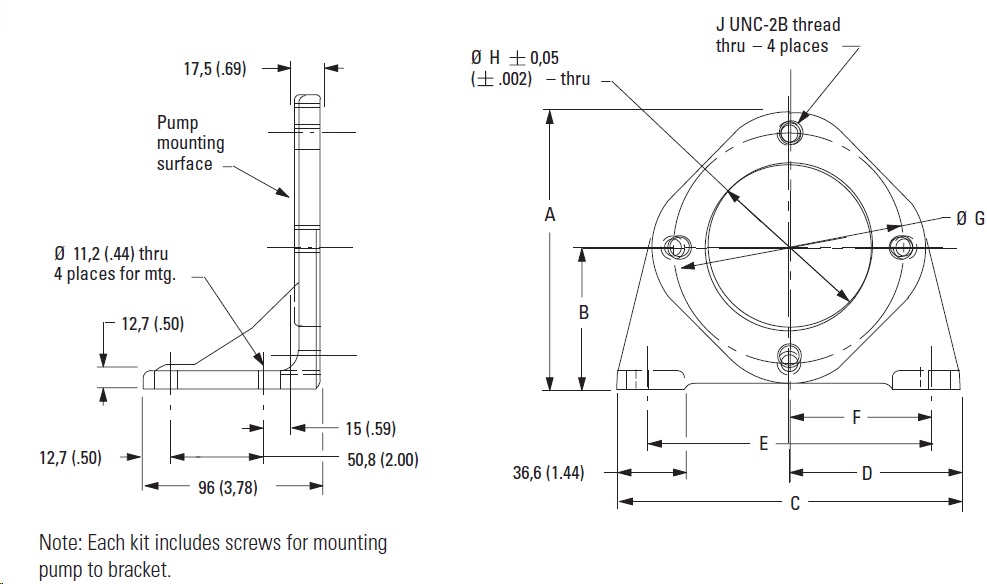

Dimensions

Foot Mounts dimensions

All dimensions in mm (inch)

Part Number	Model	A	B	C	D	E	F	G	H	J
422582	FB-A-10	134.9 (5.31)	69.8 (2.75)	152.4 (6.00)	76.2 (3.00)	127.0 (5.00)	63.5 (2.50)	106.37 (4.188)	82.63 (3.253)	0.375-16
422583	FB-B-10	180.8 (7.12)	92.2 (3.63)	171.4 (6.75)	85.7 (3.38)	146.0 (5.75)	73.1 (2.88)	146.0 (5.75)	101.68 (4.003)	0.500-13
