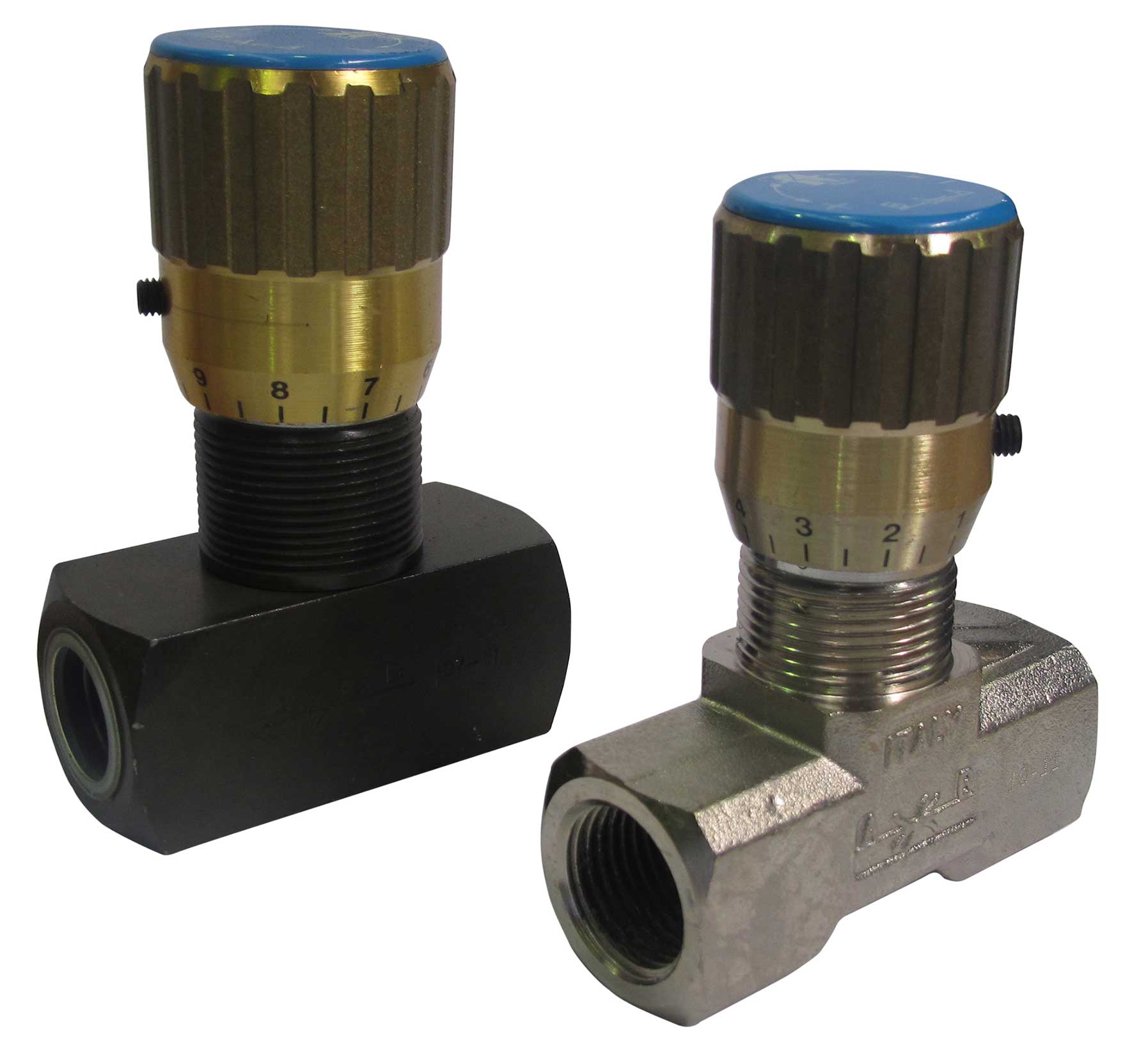

Double Acting Inline Flow Control Valves

Double Acting Flow Control Valves allow flow control in both directions.

Metallic seal
Flow linearity at the opening
Accurate control for a wide range of flow rates
A locking screw in the handle ensures stable flow values preventing accidental adjustments or movements due to vibrations.

Clear

Part Number	Port Size	Flow Rate (lpm)	Max Pressure	Material
FT1251/2-14	G1/4	15	210 Bar	Brass
FT1251/2-38	G3/8	30	210 Bar	Brass
FT1251/2-12	G1/2	50	210 Bar	Brass
FT257/2-18	G1/8	10	400 Bar	Carbon Steel
FT257/2-14	G1/4	15	400 Bar	Carbon Steel
FT257/2-38	G3/8	30	400 Bar	Carbon Steel
FT257/2-12	G1/2	50	400 Bar	Carbon Steel
FT257/2-34	G3/4	80	400 Bar	Carbon Steel
FT257/2-100	G1	150	320 Bar	Carbon Steel
