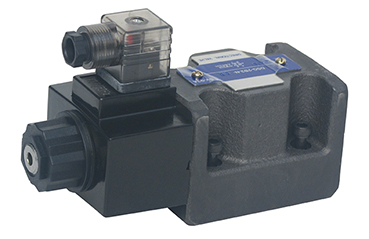

CETOP 5 Solenoid Valves

Available models

Technical Guide

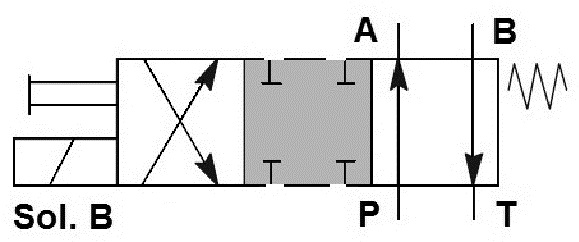

Part Number	Voltage	Coil Part Number	Coil Qty	Weight (kg)	Schematic
DSG-2B2-N-03-A3-36	110VAC	DSG-N-03-A3-36	1	3.8
DSG-2B2-N-03-A5-36	240VAC	DSG-N-03-A5-36	1	3.8
DSG-2B2-N-03-D2-36	24VDC	DSG-N-03-D2-36	1	3.8

Part Number	Votage	Coil Part Number	Coil Qty	Weight (kg)	Schematic
DSG-3C2-N-03-A3-36	110VAC	DSG-N-03-A3-36	2	4.8
DSG-3C2-N-03-A5-36	240VAC	DSG-N-03-A5-36	2	4.8
DSG-3C2-N-03-D2-36	24VDC	DSG-N-03-D2-36	2	4.8

Part Number	Voltage	Coil Part Number	Coil Qty	Weight (kg)	Schematic
DSG-3C3-N-03-D1-36	12VDC	DSG-N-03-D1-36	2	4.8
DSG-3C3-N-03-D2-36	24VDC	DSG-N-03-D2-36	2	4.8

Part Number	Voltage	Coil Part Number	Coil Qty	Weight (kg)	Schematic
DSG-3C4-N-03-A5-36	240VAC	DSG-N-03-A5-36	2	4.8
DSG-3C4-N-03-D1-36	12VDC	DSG-N-03-D1-36	2	4.8
DSG-3C4-N-03-D2-36	24VDC	DSG-N-03-D2-36	2	4.8

Part Number	Voltage	Coil Part Number	Coil Qty	Weight (kg)	Schematic
DSG-3C60-N-03-A3-36	110VAC	DSG-N-03-A3-36	2	4.8
DSG-3C60-N-03-A5-36	240VAC	DSG-N-03-A5-36	2	4.8
DSG-3C60-N-03-D1-36	12VDC	DSG-N-03-D1-36	2	4.8
DSG-3C60-N-03-D2-36	24VDC	DSG-N-03-D2-36	2	4.8

Please note a Bolt Kit and DIN Connector is included with your valve purchase.
