CETOP 3 Solenoid Valves

The Hydraulic Warehouse
Sale!

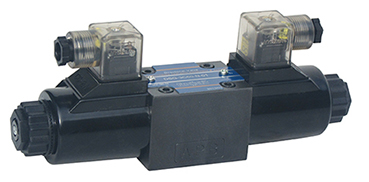

THW-CETOP-3-Solenoid-Valve
TheHydraulicWarehouse_hires

Ordering Guide

The ordering guide below provides technical specifications to assist you with your selection. When you are ready to order, simply scroll down to the 'Place your Order' section below the Ordering Guide or click on a part number in the Ordering Guide table.

Part Number Voltage Coil Part Number Coil Qty Weight (kg) Schematic
DSG-2B2-N-01-A3-36 110VAC DSG-N-01-A3-36 1 1.6
DSG-2B2-N-01-A5-36 240VAC DSG-N-01-A5-36 1 1.6
DSG-2B2-N-01-D1-36 12VDC DSG-N-01-D1-36 1 1.6
DSG-2B2-N-01-D2-36 24VDC DSG-N-01-D2-36 1 1.6



Part Number Voltage Coil Part Number Coil Qty Weight (kg) Schematic
DSG-2B3-N-01-D2-36 24VDC DSG-N-01-D2-36 1 1.6



Part Number Voltage Coil Part Number Coil Qty Weight (kg) Schematic
DSG-3C2-N-01-A3-36 110VAC DSG-N-01-A3-36 2 2
DSG-3C2-N-01-A5-36 240VAC DSG-N-01-A5-36 2 2
DSG-3C2-N-01-D1-36 12VDC DSG-N-01-D1-36 2 2
DSG-3C2-N-01-D2-36 24VDC DSG-N-01-D2-36 2 2



Part Number Voltage Coil Part Number Coil Qty Weight (kg) Schematic
DSG-3C3-N-01-A3-36 110VAC DSG-N-01-A3-36 2 2
DSG-3C3-N-01-A5-36 240VAC DSG-N-01-A5-36 2 2
DSG-3C3-N-01-D1-36 12VDC DSG-N-01-D1-36 2 2
DSG-3C3-N-01-D2-36 24VDC DSG-N-01-D2-36 2 2



Part Number Voltage Coil Part Number Coil Qty Weight (kg) Schematic
DSG-3C4-N-01-A3-36 110VAC DSG-N-01-A3-36 2 2
DSG-3C4-N-01-A5-36 240VAC DSG-N-01-A5-36 2 2
DSG-3C4-N-01-D1-36 12VDC DSG-N-01-D1-36 2 2
DSG-3C4-N-01-D2-36 24VDC DSG-N-01-D2-36 2 2



Part Number Voltage Coil Part Number Coil Qty Weight (kg) Schematic
DSG-3C60-N-01-A3-36 110VAC DSG-N-01-A3-36 2 2
DSG-3C60-N-01-A5-36 240VAC DSG-N-01-A5-36 2 2
DSG-3C60-N-01-D1-36 12VDC DSG-N-01-D1-36 2 2
DSG-3C60-N-01-D2-36 24VDC DSG-N-01-D2-36 2 2



Part Number Voltage Coil Part Number Coil Qty Weight (kg) Schematic
DSG-2D2-N-01-A3-36 110VAC DSG-N-01-A3-36 2 2
DSG-2D2-N-01-A5-36 240VAC DSG-N-01-A5-36 2 2
DSG-2D2-N-01-D2-36 24VDC DSG-N-01-D2-36 2 2

Please note a Bolt Kit and DIN Connector is included with your valve purchase.

Place your Order

To make a purchase, simply scroll down to your desired part number, enter your order quantity in the box provided and then click on the 'Add to cart' button to add the product to your shopping cart.
