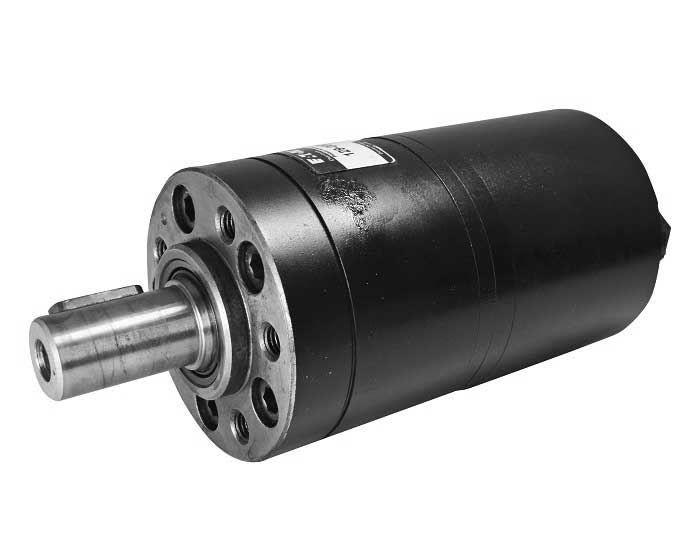

5 Bolt Mount, 5/8″ Straight Keyed Shaft, 9/16″ UNO End Ported

The Char-Lynn J2 Series motors provide a lot of power from a very small package. These motors are 61mm (2.4″) in diameter and 104mm – 130mm (4.1″ – 5.1″) in length and has up to 5 kW (6-1/2 HP) of power. The J2 shaft and seal allows high case pressure up to 76 bar (1100 psi) return line pressure without the case drain line. When a case line is used a 220 bar (3190 psi) peak pressure is allowed in the return line.

Motors

Danfoss Char-Lynn® J2 Series

Constant clearance geroler set
Integrated check valves
Self-lubricating shaft bushes
High strength rigid components
Increased valve seal lands
High pressure seals
Variety of displacements, mounts, shafts and options to meet the customers needs
High efficiency
Extended leak free performance
Powerful compact design
Design flexibility
