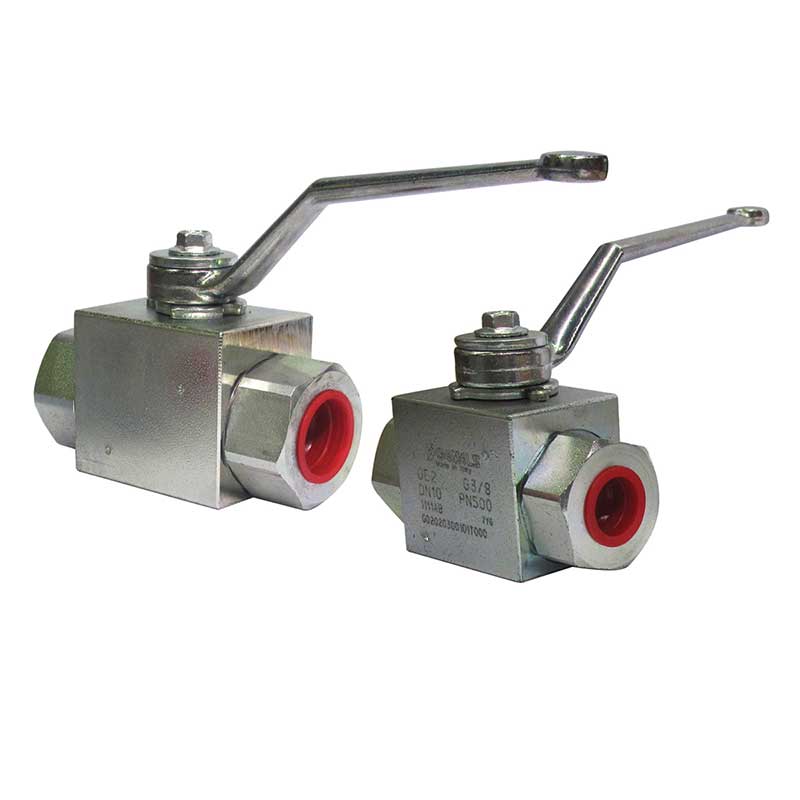

2 Way High Pressure Ball Valves

2 Way high pressure ball valves are commonly used as shut off valves or flow control valves in industrial applications

Clear

Part Number	Port Size	Max Pressure (bar)	Weight (kg)
HBV04B	G1/4	500	0.5
HBV06B	G3/8	500	0.65
HBV08B	G1/2	500	0.75
HBV12B	G3/4	400	1.4
HBV16B	G1	350	2.2
HBV20B	G1-1/4	350	2.25
HBV24B	G1-1/2	350	2.35

Part Number	Port Size	Max Press. (bar)	A	B	C	D	E	F	G	H	L	SW	LW
HBV04B	G1/4	500	35	14	71	42	11	49	30	110	16	9	6
HBV06B	G3/8	500	40	17	73	44	11	54	35	110	16	9	10
HBV08B	G1/2	500	43	18	83	48	11	57	37	110	17	9	13
HBV12B	G3/4	400	55	23	95	63	13	73	45	180	21	14	20
HBV16B	G1	350	65	29	112	67	13	83	55	180	24	14	25
HBV20B	G1-1/4	350	65	29	120	67	13	83	55	180	24	14	25
HBV24B	G1-1/2	350	65	29	124	67	13	83	55	180	24	14	25
