Calzoni HTLS Motors – Precision, Reliability & Local Support
Berendsen Fluid Power is the authorised Australian partner for Calzoni Hydraulics – a name synonymous with engineering excellence and precision. Our nationwide workshop network provides selection, service and repair support for Calzoni low-speed, high-torque (LSHT) motors, delivering long-term performance and peace of mind for end users.
Fast. Precise. Australia-wide.
Calzoni Hydraulics motor repairs.
We provide fast, reliable Calzoni Hydraulics motor repairs across Australia, ensuring your equipment performs like new. With specialist technicians, genuine parts, and precision testing, we restore efficiency, power, and reliability—minimising downtime and maximising productivity. Whether you’re dealing with wear, performance loss, or a complete breakdown, our nationwide service has you covered.
Key Features
Product Overview
Calzoni Hydraulics is a global leader in low-speed, high-torque radial piston motors (LSHT) designed for heavy-duty mobile and industrial applications. Known for exceptional mechanical and volumetric efficiency, these motors deliver smooth, precise control even at extremely low speeds (down to ~0.5–1 rpm) and provide high starting torque for demanding tasks. From winches and injection moulding to shredders, recycling systems, marine thrusters and material handling, Calzoni motors offer reliable, high-performance drive solutions built to withstand the toughest environments.
Full Australian support and servicing via Berendsen’s national network, we supply genuine Calzoni parts and provide application guidance, commissioning support and long-term maintenance solutions.

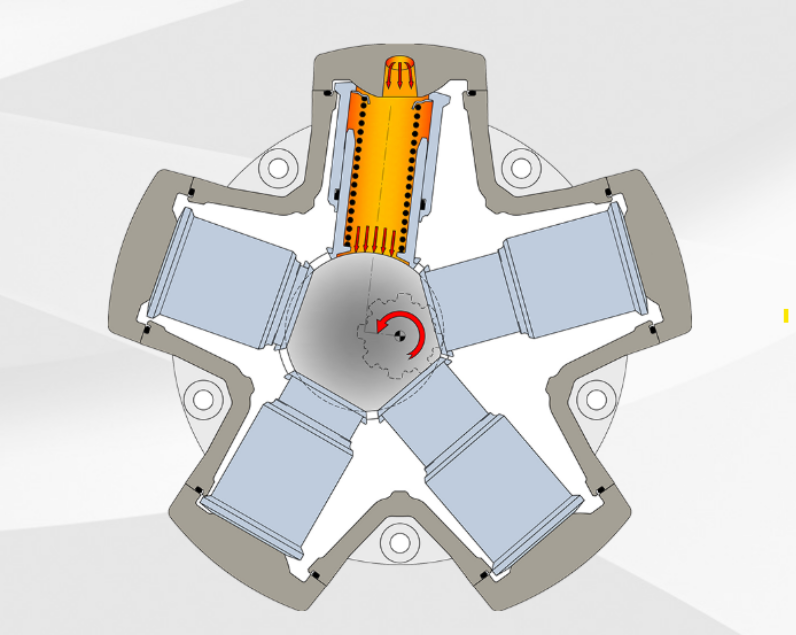

Advanced Fluid Column Technology
The technology generates torque through pressurised fluid columns rather than mechanical linkages, delivering up to 99% volumetric and 96% mechanical efficiency, with smooth control down to 0.5 rpm.
Contact Sales

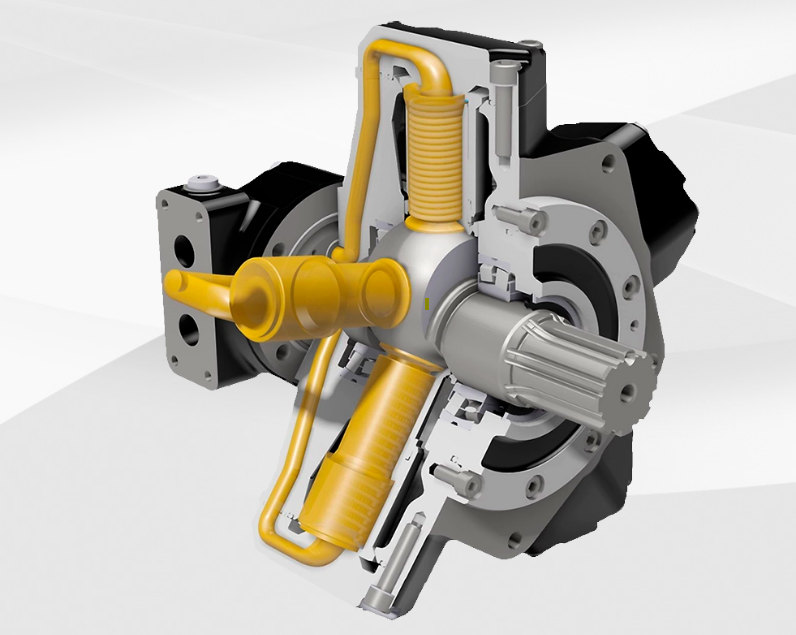

Versatile Low Speed High Torque Motor Range
The Calzoni Hydraulic MR, MRD, MRV, and MRT series motors (75 cm³ to 53,000 cm³) cover applications ranging from winches and thrusters to crushers and moulding machines across various industrial markets.
Contact SalesFor Calzoni Hydraulics motor repair services.
Contact TechniciansProducts
MR Series
Fixed Displacement 5 Pistons Motor
Calzoni Hydraulics radial piston fixed-displacement hydraulic motors, with unique fluid-column technology, have been specifically engineered for high mechanical and volumetric efficiency over a wide range of speeds and torques.
MR motors are available in 10 frame sizes, corresponding to 36 standard displacements ranging from 75 cc/rev to 9000 cc/rev.
Mechanical efficiency up to 96% and volumetric efficiency up to 99%
High starting torque – up to 95% of theoretical
Extremely reliable with long service life
Smooth low-speed rotation (0.5-1 rpm) and accurate positioning control
Resistant to thermal shocks and wide operating temperatures
Highly customisable with a full parking brake options
Product
MRD/MRV Series
Dual & Variable Displacement Motors
The Calzoni MRD/MRV motors with the dual/variable displacement system work by allowing the eccentric cam to move radially, altering its eccentricity and the motor’s displacement. Hydraulic cylinders on the drive shaft control this movement, with the MRV series adding a valve for step-by-step piloting cylinder control, enabling fully variable operation.
MRD dual-displacement motors come in 8 frame sizes with 16 standard displacements (300–8200 cc/rev).
MRV variable-displacement motors come in 7 frame sizes with 13 standard displacements (450–8200 cc/rev).
High efficiency with strong starting torque
Long life, smooth low-speed performance, and precise control
Adjustable displacement with internal/external piloting
Handles thermal shocks, wide temperatures, and many fluids
Reversible, customisable, with a full parking brake options
Product

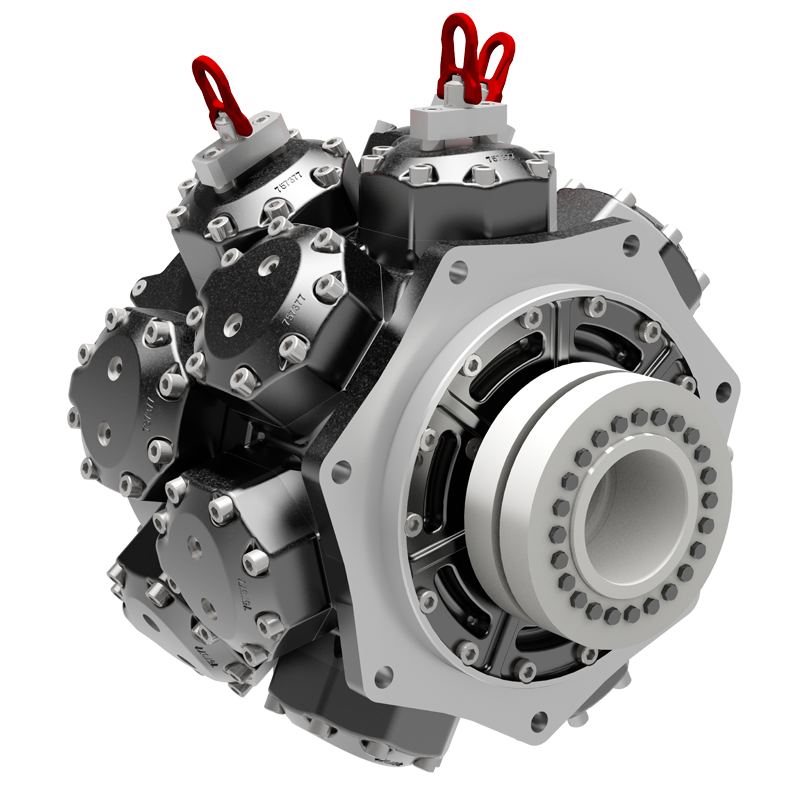

MRT Series
Fixed Displacement 10/14 Pistons Motors
Calzoni fixed-displacement radial piston motors use unique fluid column technology to deliver high mechanical and volumetric efficiency across a wide speed and torque range.
The double-eccentric MRT Series design balances radial forces for minimal bearing load, ensuring exceptional reliability and long service life. MRT models come in 5 frame sizes with 23 standard displacements from 7,100 to 53,000 cc/rev.
Extremely reliable, long-life performance with smooth low-speed rotation (down to 0.5 rpm)
Up to 96% mechanical and 99% volumetric efficiency with strong starting torque
Precise positioning control and high resistance to thermal shocks
Reversible operation and highly customisable to application needs
Product

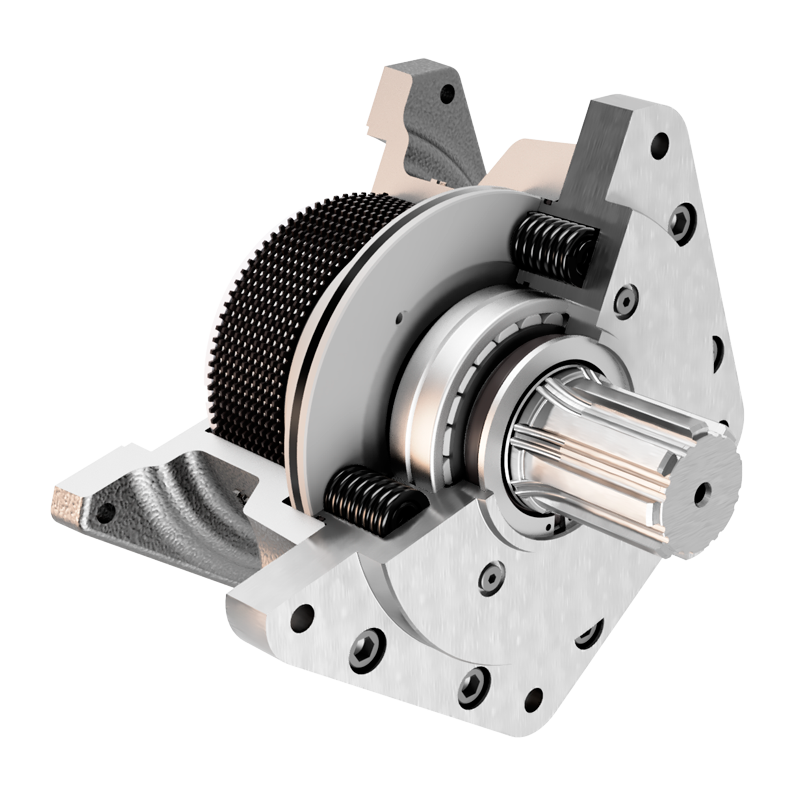

Parking Brakes
Calzoni Hydraulics “B” brake series is a spring-applied, hydraulic-released multi-disc wet parking brake, engineered for applications where it is absolutely necessary to hold the system under an external torque.
Any function that reduces the hydraulic system pressure below the release pressure of the brake will cause the brake to be activated.
Compact design with standard options for direct coupling to MR and MRD/MRV units
High reliability and long service life through strict quality control and testing
No oil refilling issues and optional low-torque braking versions for torque-limiting needs
Highly customisable with collaborative design support
Need Urgent Calzoni Motor Repair Services?
Industry & Application
Industries & Applications Powered by Calzoni Hydraulic Solutions
Calzoni Hydraulics motors and systems deliver proven performance across demanding sectors—including mining, industrial manufacturing, material handling, marine, oil & gas, and mobile equipment. Engineered for efficiency, durability, and precise control, Calzoni products keep critical operations moving, from heavy-duty extraction and offshore applications to high-precision factory automation and mobile machinery.
Common Applications
Injection Moulding
High accuracy and smooth control under variable load
Winches
Strong, dependable torque for lifting and pulling tasks
Conveyors
Efficient, smooth operation for continuous material flow
Bucket Wheel & Slew Drives
Consistent torque for large scale material handling
What are Calzoni Radial Piston Motors?
Calzoni Radial Piston Motors are high-performance hydraulic motors designed for applications requiring high torque at low speeds, exceptional efficiency, and long service life. Using advanced radial piston and fluid column technology, these motors deliver smooth, precise operation even under extreme loads and demanding conditions.
Commonly used in industrial, marine, and mobile hydraulic systems, Calzoni Radial Piston Motors are ideal for winches, material handling equipment, rotating drives, and heavy-duty machinery. Their robust construction and reliable performance make them a trusted solution where durability and control are critical.
